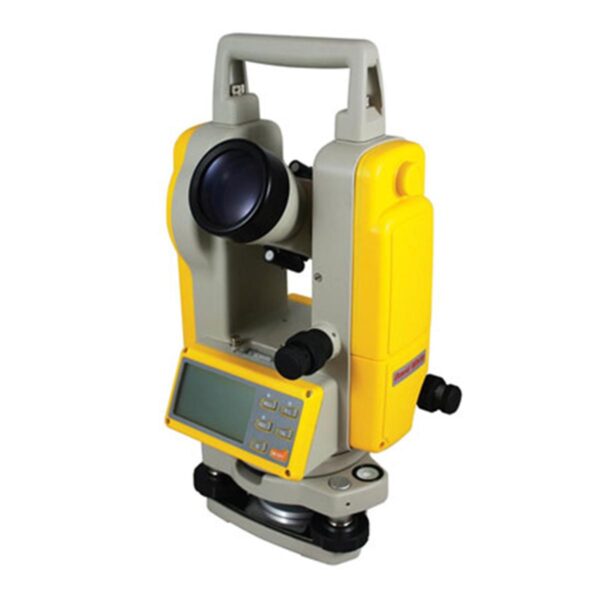

DT8-05LS 5-Second Laser Sight Digital Theodolite with Optic
Call to OrderFrontier Precision is currently adding items to the Shop, so please contact us at 800-359-3703 to order or for more information on this item.
DT8-05LS 5-second laser sight digital theodolite with optical plummet for centering over point. Laser beam is built into aperture for easy and accurate alignment.
• Incremental encoding detection system with dual digital displays
• Automatic power shut-off
• Coaxial tangent and clamp screws provide ease of use in sighting and alignment
• Built-in battery pack can be attached and detached by a single action
• Water resistant, sealed construction
SPECIFICATIONS:
Telescope:
• Objective Aperture: 1.77in (45mm)
• Magnification: 30x
• Image: erect
• Field of View: 1° 30'
• Resolution: 3"
• Minimum Focus: 53in (1.3m)
• Stadia Constant: 1
Electronic Angle Measurement:
• Angle Measurement: Absolute Encoding
• Minimum Reading: 1"/5"
• Direction Method: H. both sides, V. single side
• Accuracy: 5"
• Unit of Angle: Deg / mil / gon / V%
• Display: LCD both sides
Tilt Sensor
• Automatic Compensation: Yes
• Range of Compensation: +/- 3'
Level Vial Sensitivity
• Plate Vial: 30" per 2mm
• Circular Vial: 8' per 2mm
Other
• Operating Voltage, Typical: 4.8VDC
• Batteries: 4 x 1.5V (AA) / Rechargeable Ni-MH
• Operating Temperature Range: -4° to 122°F (-20° to 50°C)
• Waterproof Class: IP 54
• Weight: 10.2lbs (4.6kg)
• Dimensions: 6.5 x 6.1 x 13.4in (164 x 154 x 340mm)
IN THE BOX:
• Theodolite
• NiMh rechargeable battery pack/charger
• Alkaline battery pack
• Tool kit
• Rain hood
• Plumb bob and carrying case
• Manual
Additional information
| Weight | 12 lbs |
|---|
