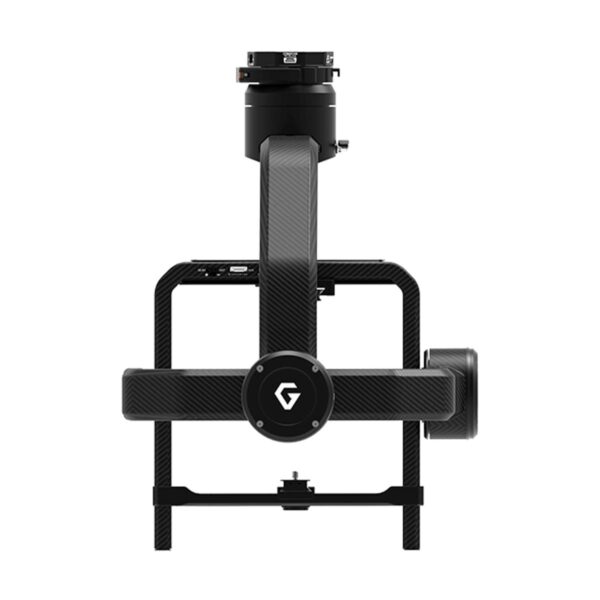

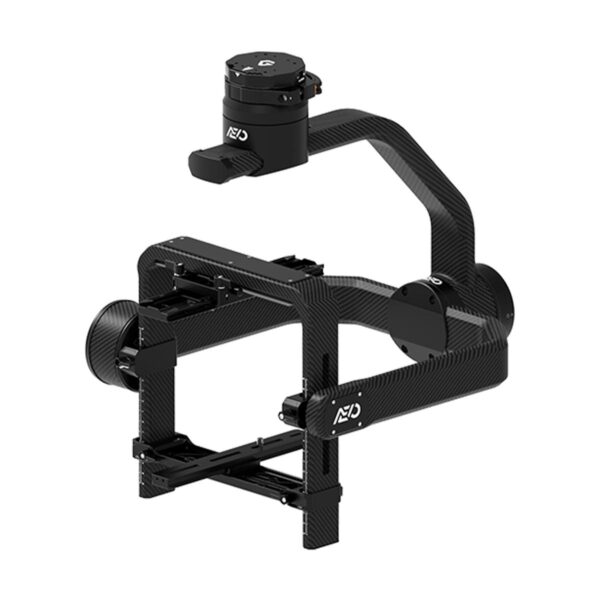

Gremsy AEVO

• Built for massive payloads (up to 9kg)
• Light and sturdy carbon construction
• Support M600 and custom drones
• SDK integration

Light and Sturdy Carbon Construction
Aevo features a sturdy carbon frame construction and improved mechanical design, which helps to boost the gimbal's rigidity while keeping it as light and compact as possible.

Built for Massive Payloads
With large camera cage and high-torque brushless motors, Aevo can effortlessly carry massive payloads up to 9kg, ideal for industrial cameras of HySpex, Specim, and iXM series.
*Custom camera mounts supported

Operation Mode
Payloads can be installed on either the top or bottom of the gimbal depending on your specific applications.

Reliable and Secure Quick Release
Incorporating both mechanics and electronics, Aevo's quick release not only provides a secure way to install the gimbal under your drone, but also enables seamless data transmission throughout the entire system.

360° Continuous Panning Capability
Allowing the camera to instantly capture every possible angle of the object, Aevo boasts a high-speed 360° infinite panning capability.

Support M600 and Custom Drones
Aevo is an easy-to-install camera stabilization for M600 and Pixhawk-based drones using its unique dampening system.
*Custom drone damping is supported based on your requirements

SDK Integration
Aevo supports SDK and MAVSDK via COM 2 port connection, allowing users to manage the gimbal and seamlessly integrate it into their solutions and applications.

IN THE BOX:
• AEVO Gimbal x1
• AEVO Quick Release x1
• USB-C Cable x1
• PWT Cable x1
• Auxiliary Cable x2
• Com 2 / Com 3 Cable x2
• SBus Cable x1
• Power Supply Cable x1
• DJI A3 Cable x1
• Allen Key 1.5mm x1
• Allen Key 2mm x1
• Allen Key 2.5mm x1
• Allen Key 3mm x1
• M4 x 10 x6

SPECIFICATIONS:
• System Type: 3-Axis Camera Stabilizer
• Weight: 5.8lbs or 2.63kg
• Construction: Carbon, Aluminum
• Input Voltage: 24-52VDC
• Connection: USB 2.0, CAN, UART, SBus, Spektrum, PPM, Bluetooth 4.0
• OS Platform Supported: Windows 10 or above; Mac OS 12.0 or above
• Single Operator: On / Off, Lock Mode, Follow Mode, Mapping Mode
• Pan Range: No Limit
• Tilt Range: +/- 120°
• Roll Range: +/- 45°
