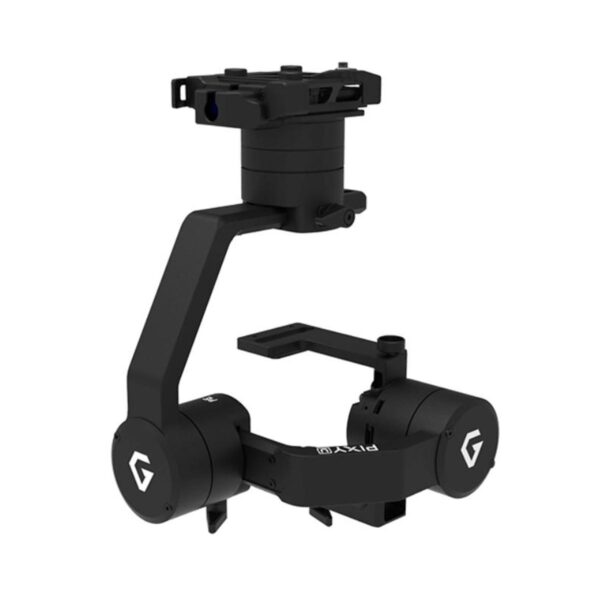

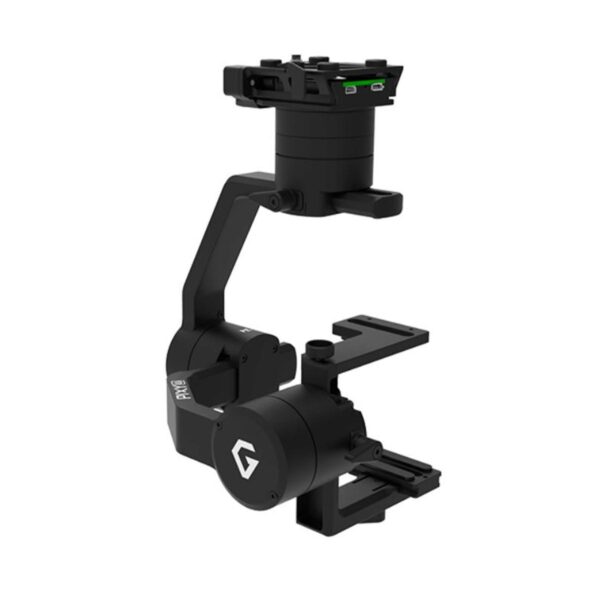

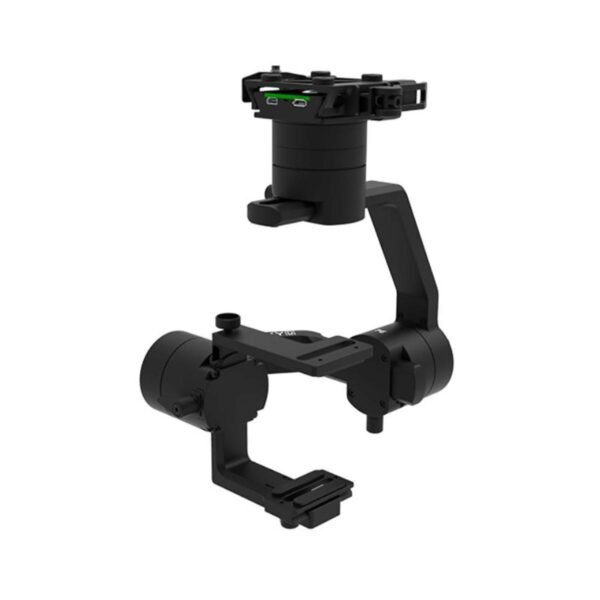

Gremsy Pixy PE
Call to OrderFrontier Precision is currently adding items to the Shop, so please contact us at 800-359-3703 to order or for more information on this item.
Support Open-architecture Pixhawk Platforms
Adhering to the Pixhawk Payload Bus standard, Gremsy PE is equipped with a new quick-release operating on a sliding mechanism, helping PE gimbals plug and play with the most Pixhawk-based platforms including Skynode, Pixhawk, and Cube.
Intuitive Connectivity Interface on PE Hub
I/O interface on the PE hub makes it simple and straightforward to connect with your flight controller system and companion computer.
IN THE BOX:
• Gimbal Pixy PE x1
• Linear QR x1
• PE Hub x1
• Camera Plate Standard x1
• Sbus Cable x1
• Cable for Pixhawk (Com 2) x1
• Power Supply Cable x1
• Linear QR Cable x1
• FFC Cable (10cm) x1
• Micro USB Cable x1
• M2 x 6 Screws x4
• M3 x 6 Screws x8
• Camera Bolt 1/4in - 20 x2
• Allen Key 1.5 (mm) x1
• Allen Key 2 (mm) x1
• Allen Key 2.5 (mm) x1
SPECIFICATIONS:
• System Type: 3-axis camera stabilizer
• Weight: 1.04lbs (470g)
• Construction: Aluminum
• Input Voltage: 14-52V
• Connection: USB 2.0, Ethernet, CAN, UART, S-bus, PPM, Bluetooth, Micro HDMI
• OS Platform Supported: Windows XP or above; Mac OS 10.9 or above
• Single Operator: Lock Mode, Follow Mode, Mapping Mode
• Dual Operator: SBus / Spektrum / PPM / MAVLink
• Pan Axis Control: 330° to -330°
• Tilt Axis Control: 135° to -45°
• Roll Axis Control: (+/-) 45°
Additional information
| Weight | 4 lbs |
|---|
