HP SitePrint A2PS9A - Autonomous Layout Printing Robot

The Robotic Solution for Autonomous Layouts in Various Site Conditions

Construction sites are one of the most unpredictable environments and conditions change on a regular basis. HP SitePrint adapts to your job site’s conditions to deliver efficient and accurate layouts – safely and seamlessly. HP SitePrint is also the first robotic layout solution that unifies floor deviation marking in a real-time consolidated process. It is designed to:

• Achieve precision navigation and printing on rough surfaces: its printhead is positioned ¾” or 19 mm above the floor to prevent collisions and to allow printing on areas that don’t require a broom-swept floor.
• Operate in temperatures ranging from -10ºC to 50ºC, allowing you to layout no matter the season.

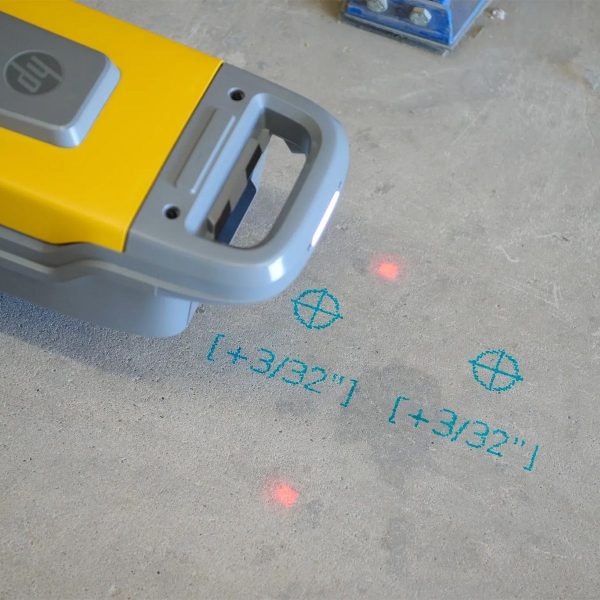

• Cut down workdays with an all-in-one floor deviation marking process including measuring floor levels while performing layouts, processing data, and marking deviations — all on-site in real-time.
• HP SitePrint offers a comprehensive portfolio of 8 easily interchangeable inks designed for a variety of surfaces — like tarmac, rough concrete, plywood, or formwork, amongst others — and different durability requirements from permanent to erasable.

Safety Stop Technology

Safety is always a top concern for construction companies. Construction sites’ dynamic nature can make them unstable and unsafe, so ensuring the safety and well-being of workers is a main priority. Full autonomy can only be achieved if you can trust the robot to safely perform in any circumstance. The robotic layout system operates autonomously by incorporating two sets of sensors: a first set that prevents collisions, and a second set that is hardware-activated, and prevents accidental falls by continuously monitoring its environment to safely detect any potential obstacles, cliffs, or depressions— establishing it as a secure robotic solution for sites.

HP SitePrint’s safety features are fully certified, so you can be sure it successfully meets the prescribed industrial safety standards:

• United States & Canada CAN/UL 3100 TÜV SÜD Certified.
• EU MD compliant EN 1175, EN 60204-1, EN ISO 3691, EN ISO 13849

Adapted to your current layout workflow. | Automating your layout process is easier than you think.

HP SitePrint pairs with a Robotic Total Station (RTS) to achieve precise layouts. It is fully integrated in the workflow that you use, with the same software that allows you to use your RTS for other tasks on the construction site. It is compatible with leading RTSs in the industry; including the Trimble RTS573, and Trimble S9.

Groundbreaking Performance and Productivity

Save on manual work and reduce costs with automated layout and real-time floor deviation marking. Autonomous printing with obstacle avoidance. Printed on-slab text helps deliver executions as per plan.

Accurate Layouts

Complete layout projects and print floor deviation data accurately. Complex layouts spot-on, laying out intricate arcs and circumferences. Raise the bar of predictability, minimizing redos and with great rigor.

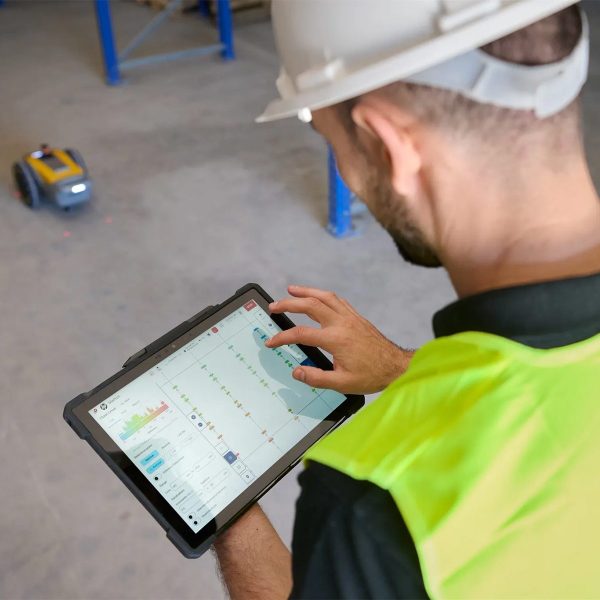

One Easy Solution to Do it All

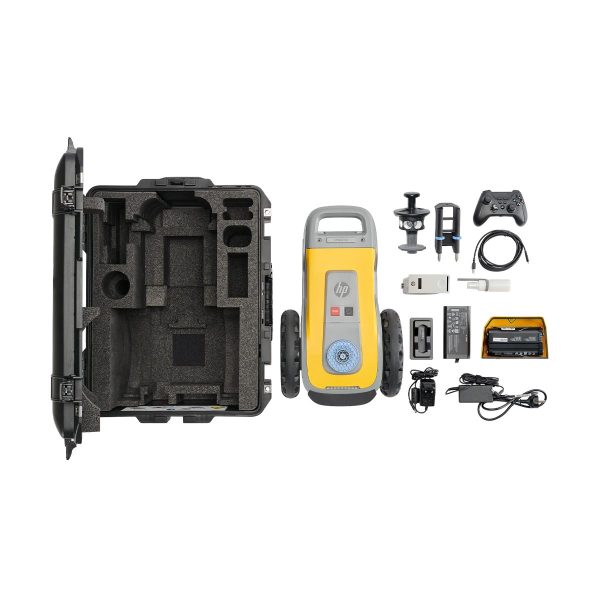

Simple layout and floor deviation marking management. Facilitate collaboration among trades by sharing the latest BIM/CAD model and printing clear indications on the slab. Compact design that fits in a portable case for effortless transport.
