Radiodetection Flexitrace TX-Energized Pushrod 262′
Call to OrderFrontier Precision is currently adding items to the Shop, so please contact us at 800-359-3703 to order or for more information on this item.
Only Available In WA, OR, ID, MT, WY, CO, HI, and AK.

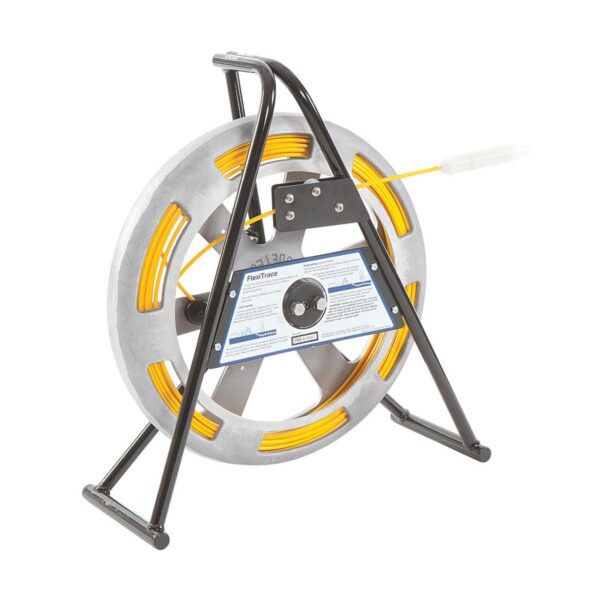

The Radiodetection FlexiTrace is a flexible rod containing conducting wires running the full length of the rod, with a transmitting sonde at the end. FlexiTrace is inserted into pipes and ducts where size restricts the use of larger diameter sondes and used to trace the line of a pipe, duct or to locate blockages and collapses to a depth of 3m.
To use the FlexiTrace, the rod or sonde can be energized by using a Radiodetection transmitter and located using a suitable Radiodetection locator.
By connecting the output of the transmitter across both stud terminals of the FlexiTrace, only the sonde will be energized and can be used for pinpointing blockages etc.
By connecting the transmitter output to one of the stud terminals and a ground through an earth stake, the entire length of rod can be energized, enabling the tracing of the length of FlexiTrace rod inside the pipe or duct.
Â
*When using a Tx-5 or Tx-10 transmitter, some power restrictions apply.
Additional information
| Weight | 14 lbs |
|---|
