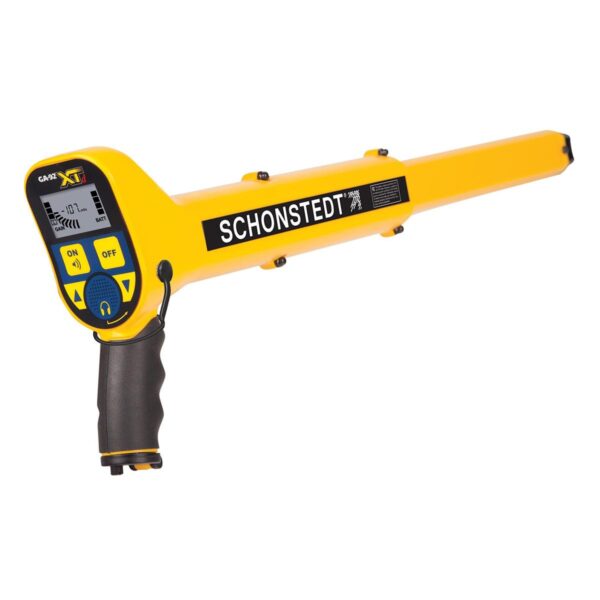

Schonstedt GA92XTD Magnetic Locator
Call to OrderFrontier Precision is currently adding items to the Shop, so please contact us at 800-359-3703 to order or for more information on this item.

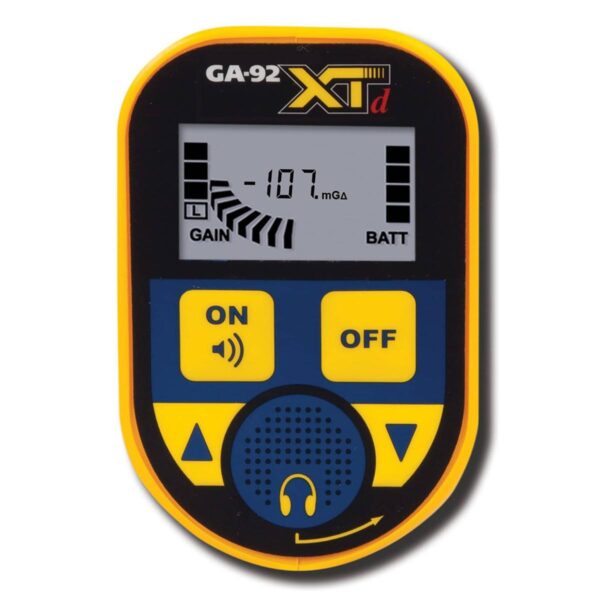

The Schonstedt GA-92XTd Magnetic Locator detects the magnetic field of ferromagnetic objects. It responds to the difference in the magnetic field between two sensors that are spaced approximately 9.5 inches apart. This difference is referred to as the “signal strength” and is represented in the instrument by an audio tone, the display of a bar graph, and a numeric indication. In addition, the polarity of the signal strength is shown as a + or – sign on the display, and determines the side (right or left) on which the bar graph is displayed. Although most objects can be located using the audio indication alone, simultaneous use of the audio and visual responses will provide additional information to help you pinpoint a target and determine its orientation.
FEATURES:
- Ultralight design
- Compact and Portable: Receiver retracts for easy carrying
- Multi-Frequency Versatility: 512Hz, 33kHz and 82kHz, plus 50/60Hz passive and 512Hz sonde detection
- Designed for utility locating professionals in water, sewer, gas, electric, telecomm industries.
SPECIFICATIONS:
- Operating Frequency, Active: 512Hz, 33kHz and 82kHz; Passive: 50 or 60Hz; Sonde: 512Hz
- Battery: One 9V battery
- Battery Life: 12 hours (intermittent use)
- Weight (incl. batteries): 2.8lbs (1.25kg)
- Operating Temp: -4° to 140°F (-20° to 70°C)
- Water and Dust Resistance: Rated IP54
- Dimensions: Closed: 17.5in (~44cm); Extended: 27.7in (~70cm)
- Max. Depth Capability: Approximately 19ft (5.8m)
- Sonde mode: approximately 5 to 15ft (1.5 to 4.2m)
Additional information
| Weight | 3 lbs |
|---|
