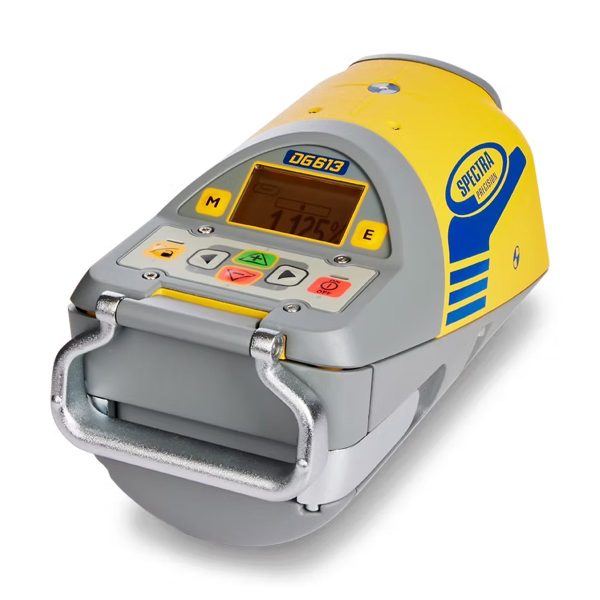

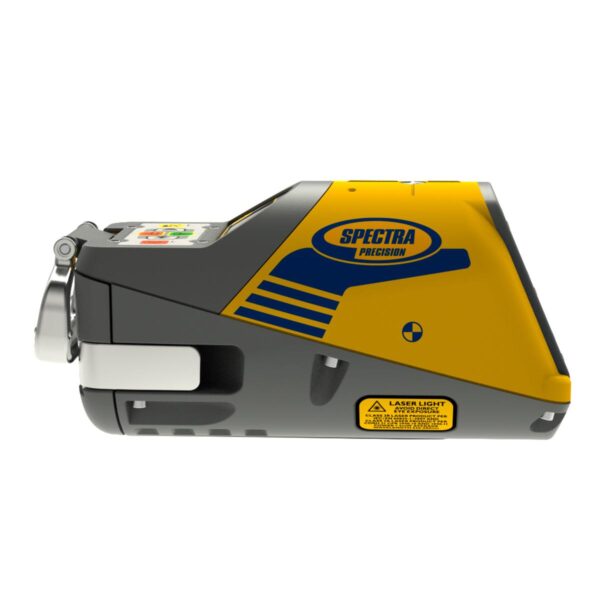

Spectra Precision DG613 Pipe Laser

Call to OrderFrontier Precision is currently adding items to the Shop, so please contact us at 800-359-3703 to order or for more information on this item.

Easy set-up pipe laser, even in the tightest inverts.

Compact and Powerful, the DG613 red beam laser combines great performance with productivity. Advanced functions are user-friendly and allow for easy, fast set-up. Simple to use, with the new menu driven user interface.

Compact, tough and smart – perfection in a pipe.
Designed to fit around tighter inverts, the Spectra Precision DG613 delivers one of the most productive pipe laying experience in the market. They are extremely rugged and thrive in demanding underground conditions. Benefitting from the latest technology developed by Spectra Precision, the beams move quickly and accurately for alignment and grade. Working in the trenches just got easier with the new range of pipe lasers from Spectra Precision.

Features & Benefits:

Grade range -12% to +40%

Ultra-fast beam movement

Operating range up to 150 m (500 ft)

Large intuitive graphical display on the laser and remote control

IP68 protection (dust and waterproof)

Flexible power options (NiMH / Alkaline)

Advanced functions squeezing working time: Line Set/Check (first day setup), Line Scan (second day setup) and Line Alert

Automatic functions for beam alignment, beam detection, and grade calculation (DG813 only)

Compact length allows easy set-up even in tight inverts

Self-leveling range of -12% to +40% over the entire grade range

Cross axis compensation provides a quicker more accurate set-up as the laser does not have to be level in the pipe – place it in the pipe, it levels, you work

Bright visible beam works up to 150 m (500 ft)

RC803 remote works via radio 130 m (430ft) "over-the-top“ set-up or infrared 150 m (500 ft) in the pipe set-up​

Advanced functions make setting up and using it easy and accurate.


Specifications:

Self-Leveling Range
Longitudinal: Over the entire grade range

with automatic cross axis compensation

Accuracy
± 1.5 mm/30 m, (1/16 in @ 100 ft) 10 arc seconds

Laser Type
Class 3A/3R, <5mW OR Class 2

Power Source & Life
10000mAh NiMH battery pack

DG813, DG613: red - 40 hours NIMH - DG613G: green - 30 hours NIMH

Grade Range
-12% to +40%

Operating Range
up to 150 m (500 feet)

​Storage Temperature
-20°C to 70°C (-4°F to 158°F)

​Operating Temperature
-20°C to 50°C (-4°F to 122°F)

Dust & Waterproof
Yes. IP 68

​Weight
3.98 kg (6.61 lbs)

​Tripod Mount
5/8 x 11 horizontal

​Warranty
5 Years



Applications:

  • Installation of gravity flow sanitary pipelines
  • Storm sewer pipelines
  • Pipe jacking
  • Can be used in a pipe or in “Over the Top” set-ups

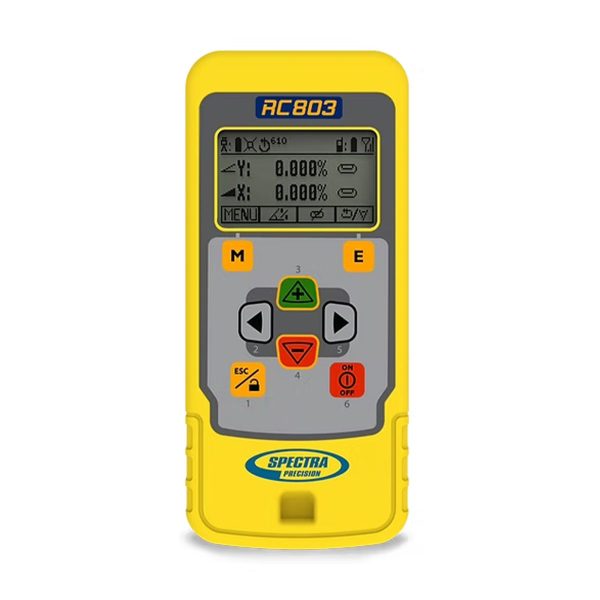

Remote Control RC803:

  • Radio operating range (Over the Top): up to 130 m (425 ft)
  • IR operating range (front, through the pipe): up to 150 m (500 ft)
  • Power source: 2 x 1.5V AA alkaline batteries
  • Battery life: 130 hours
  • Dust and Water proof: IP66
  • Weight (incl. batteries): 0.26 kg (0.57 lbs)

Additional information

Weight 12 lbs
