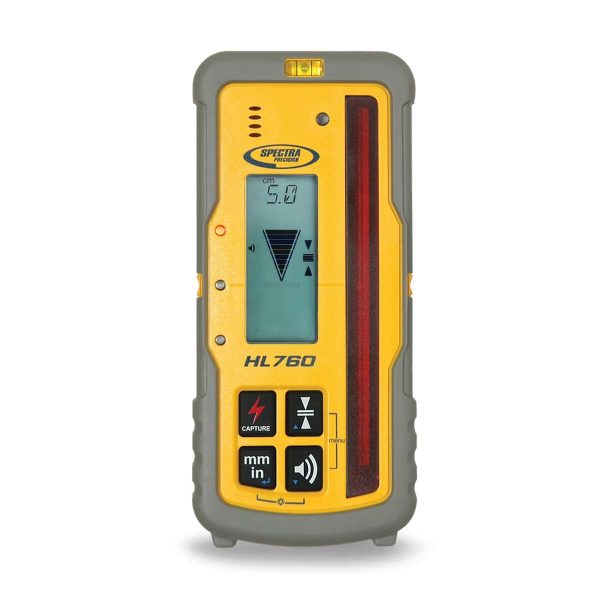

Spectra Precision HL760 Receiver

Call to OrderFrontier Precision is currently adding items to the Shop, so please contact us at 800-359-3703 to order or for more information on this item.

Our powerful set of laser receivers.

The HL760 and the HL760U Digital Readout Receivers are a highly versatile laser receiver for basic and advanced leveling and aligning applications. It is designed for general, concrete and site preparation contractors. The HL760U is ideal for use with any rotating transmitter including red beam and green beam lasers.

Spectra Precision HL760 Receiver

Our patented “Light Bar” technology has significant advantages.
With “light bar” technology, laser detection resolution is nearly infinite allowing greater accuracy and consistency. Fewer electronic components and connections are used. So “light bar” based products result in a more robust product.

Features & Benefits:

  • Digital readout of elevation – no need to go to “on-grade” to measure, saves considerable time.
  • Large 12.7 cm (5 inch) reception height acquires the beam quickly and makes it easy to stay in the beam.
  • Works with another HL760 or HL760U for long range wireless remote display and monitoring – even when the second receiver is out of sight (up to 80 m or 260 ft.).
  • Anti-strobe sensor stops construction strobe lights from setting off the receiver, and makes it easier to identify true laser beam signals.
  • Dust and weatherproof housing withstands a drop of up to 3 m (10 ft) onto concrete for reduced downtime.
  • Includes C70 rod clamp with bubble vial.
  • The HL760U accepts red beam and green beam laser frequencies.

Specifications:

Working Radius
(Laser Dependent)

1 m - 460 m (3 ft - 1500 ft)

Laser Detection Height
127.0 mm (5“)

Numeric Readout Height
102.0 mm (4“)

Accuracy
(Dead-band)

Ultra Fine 0.5 mm 0.02 in 1/32 in
Super Fine 1.0 mm 0.05 in 1/16 in
Fine 2.0 mm 0.10 in 1/8 in
Medium 5.0 mm 0.20 in 1/4 in
Coarse 10.0 mm 0.50 in 1/2 in

Reception Angle
± 45° minimum

Battery Life
60+ hours; 16 continuous backlight

Environmental
Waterproof, Dust-proof to IP67

Detectable Spectrum
610 nm ... 780 nm (HL760)
520 nm ... 780 nm (HL760U)

Beeper Volumes
Loud = 110 dBA

Medium = 95 dBA
Low = 65 dBA

Power Supply
2 x 1.5 Volt “AA” batteries

Dimensions
168.0 x 76.0 x 36.0 mm (6.6” x 3.0” x 1.4”)

Operating Temperature
-20°C...+60°C (-4°F... +140°F)

Storage Temperature
-40°C...+70°C (-40°F...+158°F)

Automatic Shut-Off
30 min

Additional information

Weight 5 lbs
