Spectra Precision LL300N Laser Level

Name: Spectra Precision LL300N Laser Level - Frontier Precision Shop
SKU: LL300N
Price: 1291.00 USD
Availability: InStock

Call to OrderFrontier Precision is currently adding items to the Shop, so please contact us at 800-359-3703 to order or for more information on this item.

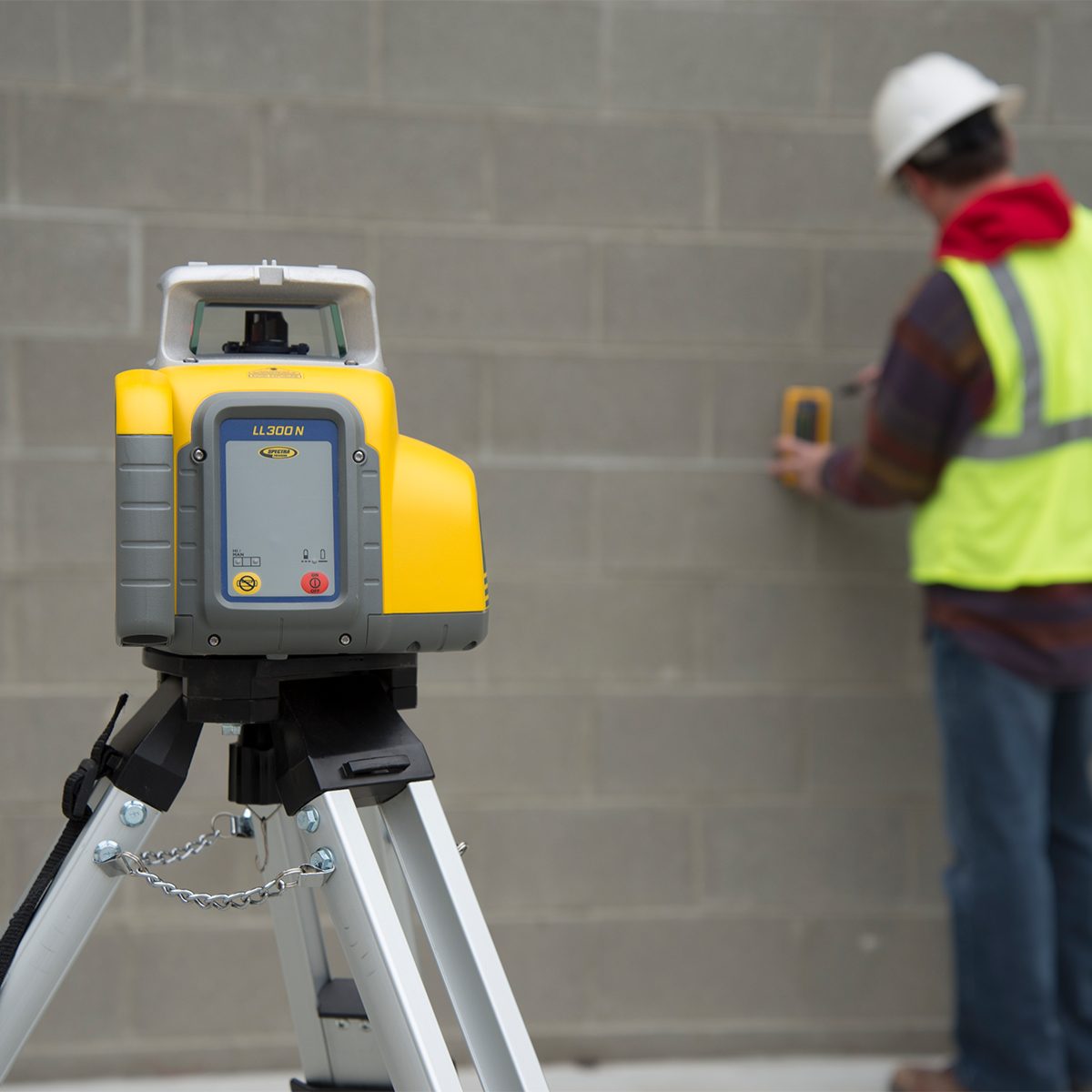

The Spectra LL300N laser level is built to perform in rough environments.

The Spectra LL300N Laser Level features a rugged design with “hard hat” rotor protection that provides superior drop and weather protection. Built to withstand severe drops of up to 3 ft (1 m) directly onto concrete, or up to 5 ft (1.5 m) when pushed over on a tripod means less downtime and cost due to damage caused by accidental drop.

SKU: LL300N Categories: Building Construction, Laser Levels, Receivers, Detectors, & Accessories, PAGE-BuildConst-Tools, Spectra Precision

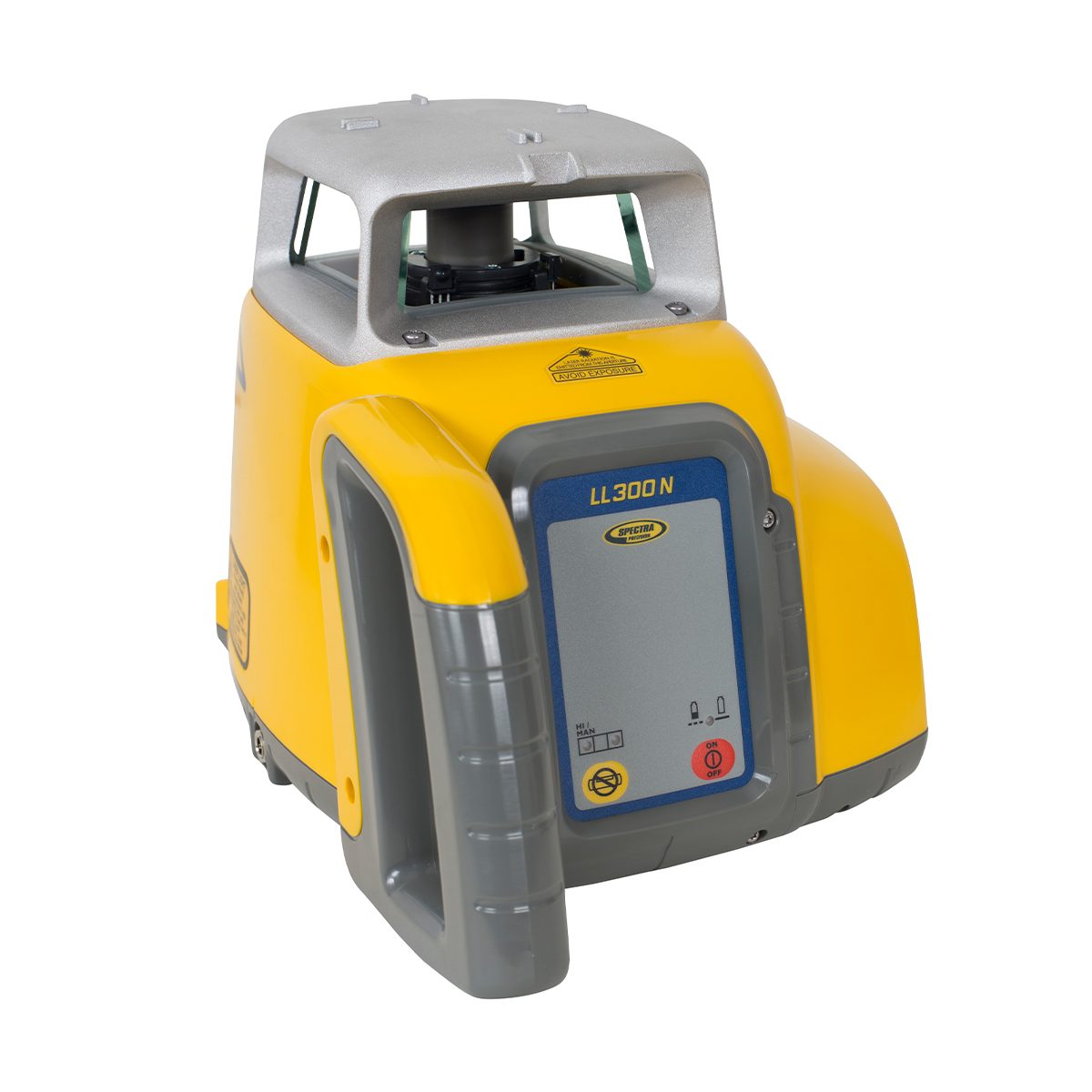

Spectra Precision LL300N Laser Level - Image 2

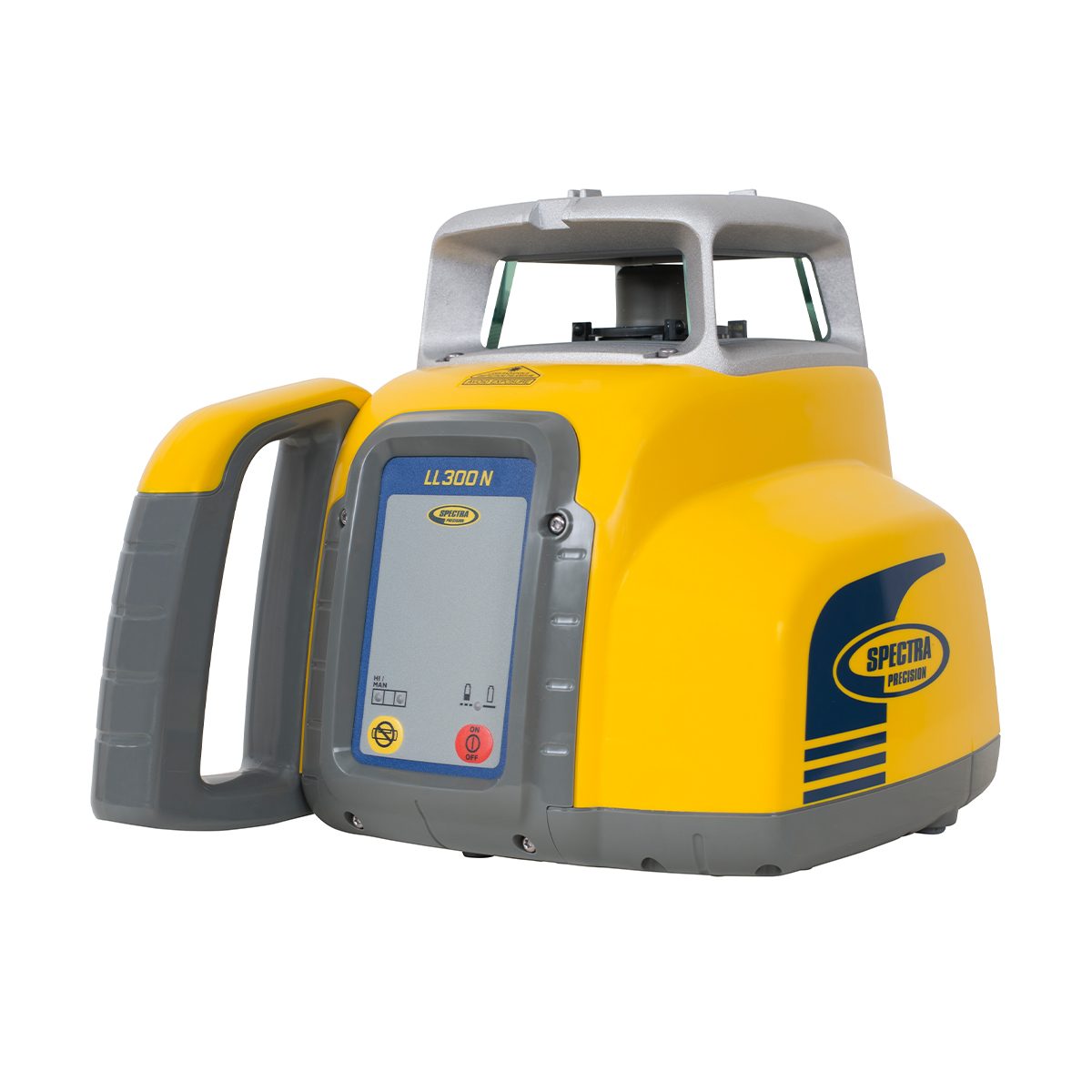

Spectra Precision LL300N Laser Level - Image 3

Spectra Precision LL300N Laser Level - Image 4

Spectra Precision LL300N Laser Level - Image 5

Description
Additional information
Downloads

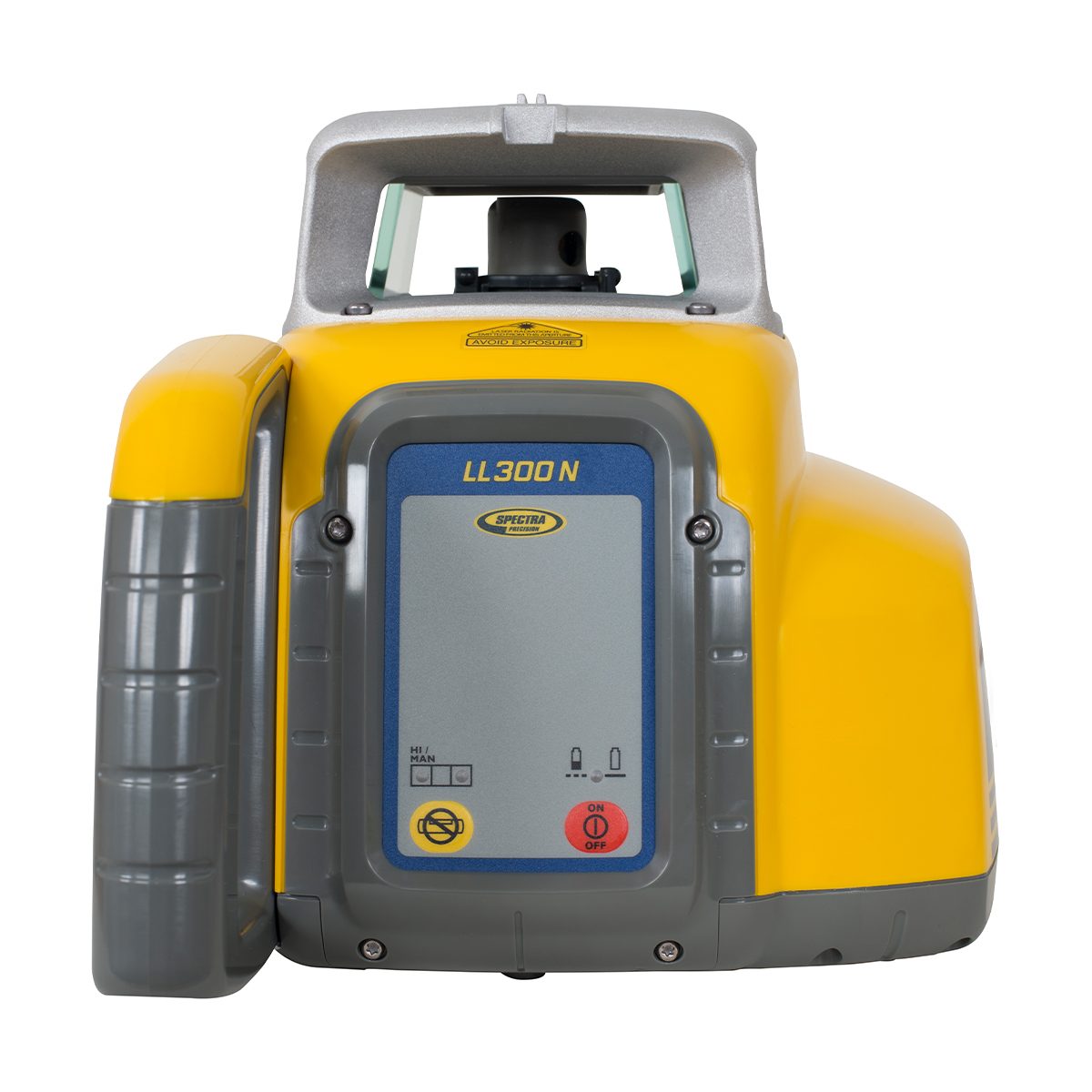

Spectra Precision LL300N Laser Level
Strong. Smart. Rugged.

Features & Benefits:

Increases Productivity - with fast setups, fewer mechanical parts, and automatic self-leveling.

One Person Elevation Control - with 1,650 ft (500 m) diameter range increases productivity.

Maintains Performance - even in rainy, dusty and other harsh job site and weather conditions – IP66 environmental rating.

Durable Design - reduces downtime due to drops and tripod tip-overs.

Increases Flexibility - with remote control slope option.

Comes Standard - with HL450 Digital Readout Receiver and other configurations are available.

Kits Available - with system case which contain laser, receiver, tripod and grade rod.

Specifications:

Laser Source
650 nm, Class 2, <3,4mW

Laser Accuracy
±3/32 in at 100 ft (±2.2 mm at 30 m)

Compensation Method
Electronic self-leveling / ±5 degrees

Operating Range
1,650 ft (500 m) diameter

Out of Level Warning
Rotor stops, laser shuts off, red out-of-level LED flashes

Rotation Speed
600 RPM

Operating Temperature
-4 °F to 122 °F (-20 °C to 50 °C)

Storage Temperature
-4 °F to 158 °F (-20 °C to 70 °C)

Battery Life
Rechargeable - 45 hours
Alkaline - 90 hours

Size
10.7L × 7.7W × 7.9H in
(27.2L × 19.7W × 20.1H cm)

Dust & Waterproof
Yes. IP 66

Weight
5.9 lbs (2.7 kg)

Low Voltage Indicator
LCD battery indicator

Warranty
5 Years

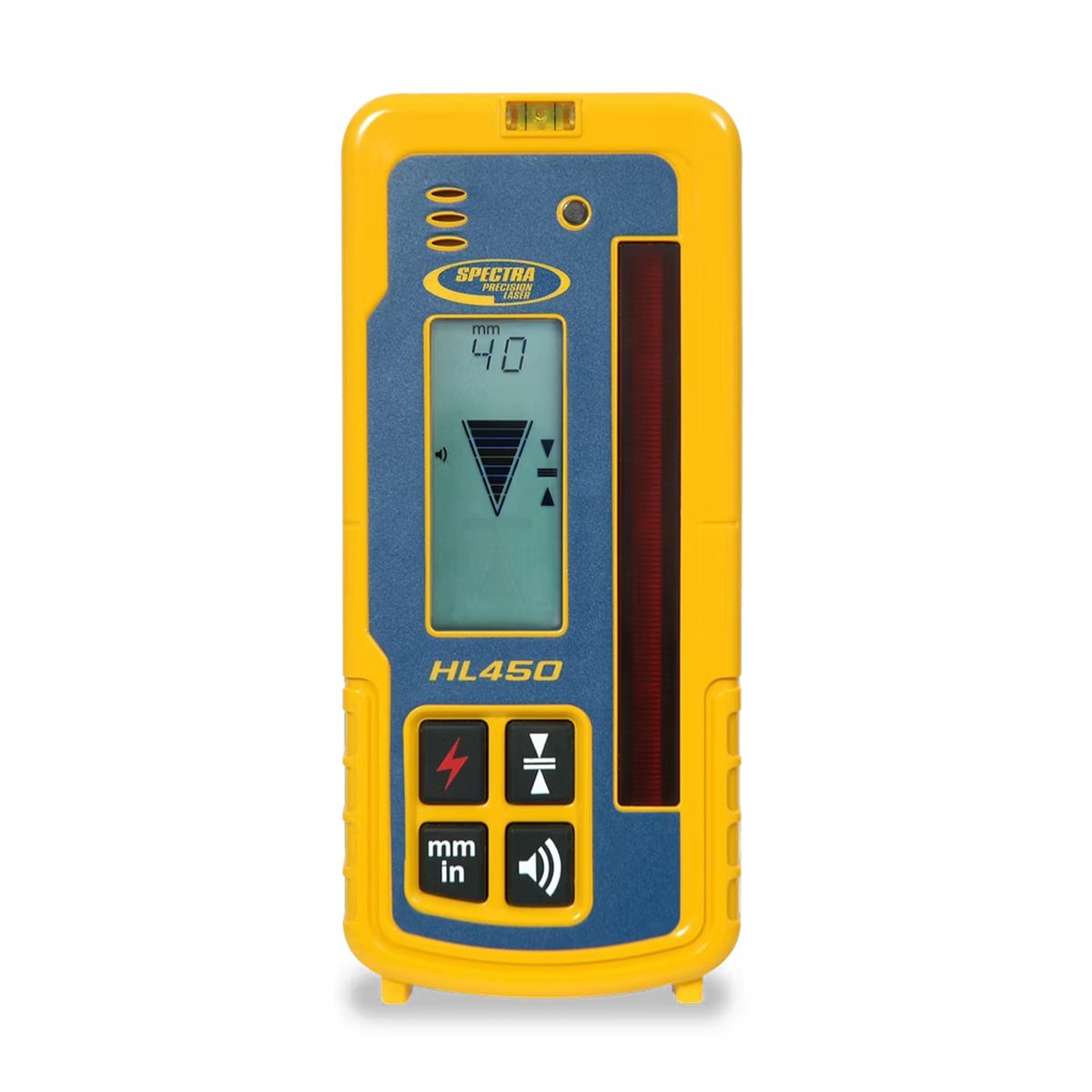

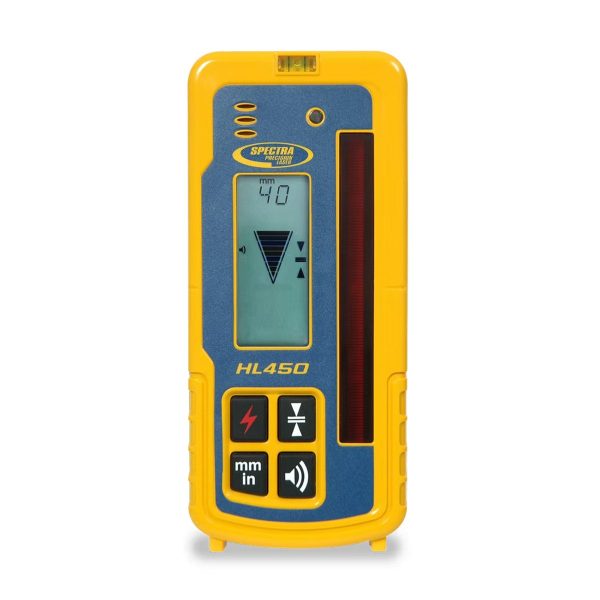

Spectra Precision HL450 Receiver Specifications:

Digital Readout Units: mm, ft, in, frac
Reception Height: 4 inches (102 mm)
Three On-grade Sensitivities:
• Fine ~1/16 in (1 mm)
• Medium ~1/4 in (5 mm)
• Calibration Mode ~1/64 in (0.1 mm)
Battery Life (2 x AA): 70+ hrs
Automatic Shutoff: 30 minutes
Operating Temp.: -4°F to 122°F (-20°C to 50°C)
Dust & Waterproof: Yes IP67
Weight without Clamp: 13.1 oz (0.371 kg)
Warranty: 3 Years, 2 Years “No Excuses”
