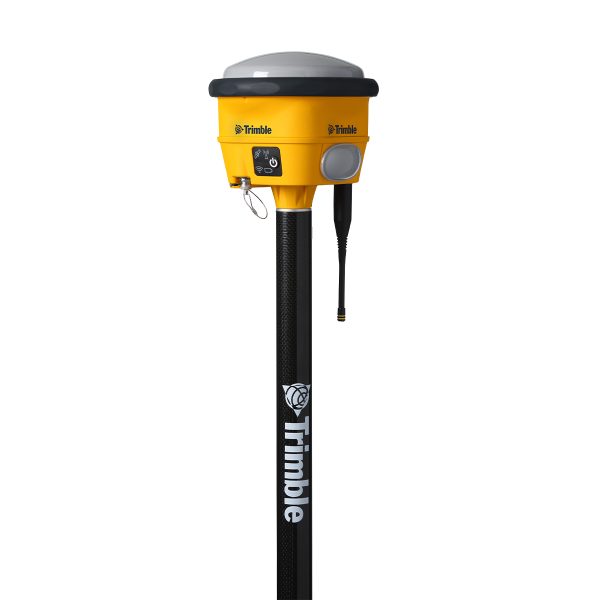

Trimble CON-R780-02-50 R780 GNSS Smart Antenna

Trimble CON-R780-02-50 R780 GNSS Smart Antenna

The R780 is scalable from entry-level to high-precision applications to fit your needs. Its integrated dual-band radio gives contractors the flexibility to work on any site, switching between 450 and 900 MHz as needed without requiring any additional equipment — ideal for working in mixed fleet operations.

The R780 has a longer battery life and incorporates the latest technology to make construction surveying easier, safer and more productive.

All-in-one Solution

• Tilt compensation functionality to measure accurate points without leveling the pole
• Dual-band radio (450 / 900 MHz) to connect to diverse base stations and job sites without the expense of additional external radios
• The dual Trimble Maxwell™ 7 GNSS ASIC chip enables greater performance in challenging GNSS environments (blocked sky, multi-path, or degraded signal) and provides more channels for future constellation changes so your investment remains valuable over time
• Real-time kinematic (RTK) corrections for higher-accuracy site measurements
• VRS and IBSS compatible for a more economical solution
• Compact design with unprecedented strength and durability, easy to use and virtually indestructible, helping you eliminate downtime

Powered by Trimble Technology

• Trimble ProPoint® GNSS technology uses all available signals to provide positioning in challenging environments where other GNSS systems fail
• Included for the first 12 months, Trimble CenterPoint® RTX is a real-time GNSS corrections service available globally via satellite or the internet. It provides RTK-level accuracy at fast convergence times, without the need for a base station or real-time network (learn more at rtx.trimble.com)
• Trimble xFill® technology seamlessly fills in for gaps in RTK or VRS connection streams if the connection is lost, reducing downtime and expanding site productivity
• Trimble IonoGuard™ technology reduces ionospheric interference for consistent and reliable positioning

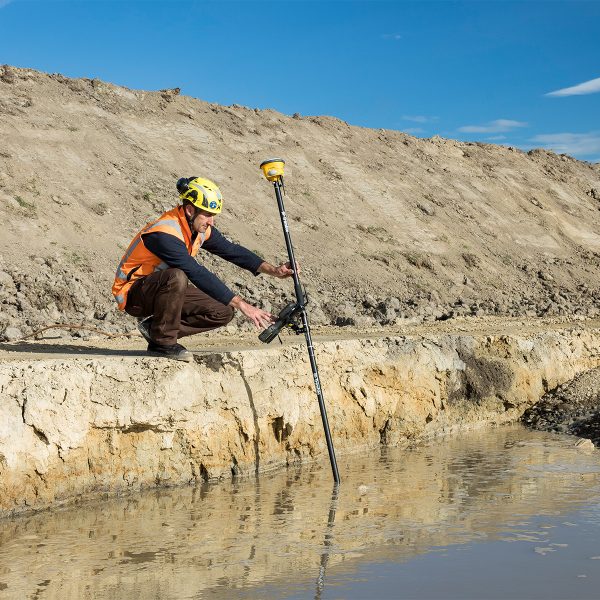

Tilt Compensation
Using the R780 and Trimble Siteworks Software, capture accurate points while standing, walking or driving the site, without leveling the pole. With GNSS tilt compensation, Siteworks is easier to learn for beginners and saves significant time for more experienced surveyors.

• Easily and safely survey hard to reach areas (corners, traffic lanes, utility flowlines)
• Faster measurements
• More efficient stake-outs
• No magnetic interference

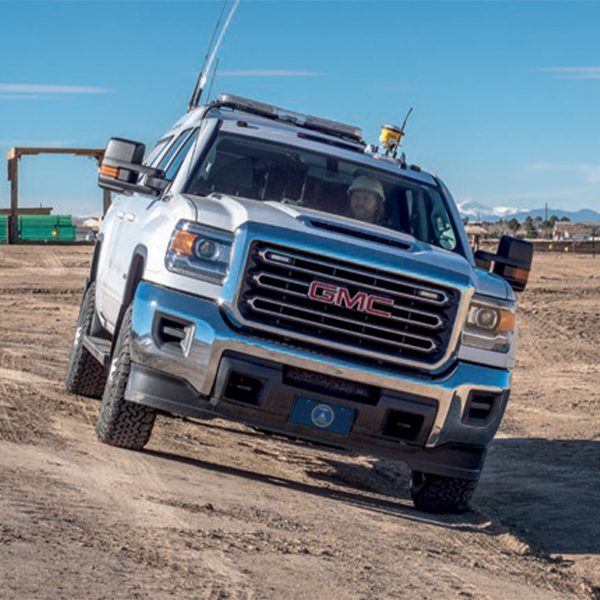

In vehicle mode, capture higher accuracy measurements on steeper slopes from a moving vehicle, and more accurate volumes to save time and money on material planning. Built to withstand high vibration scenarios without interruption or damage, the R780 can perform site topos, road centerlines and check as-builts in even the roughest site conditions.

Applications
With the R780 and Siteworks, you can:

• Determine cut/fill on a range pole, utility vehicle or truck.
• Record tilt data when taking measurements.
• Stake out site or road features, utilities, daylight lines and side slopes.
• Measure progress and calculate material stockpile volumes.
• Carry out as-built measurements, grade checks and thickness checks.

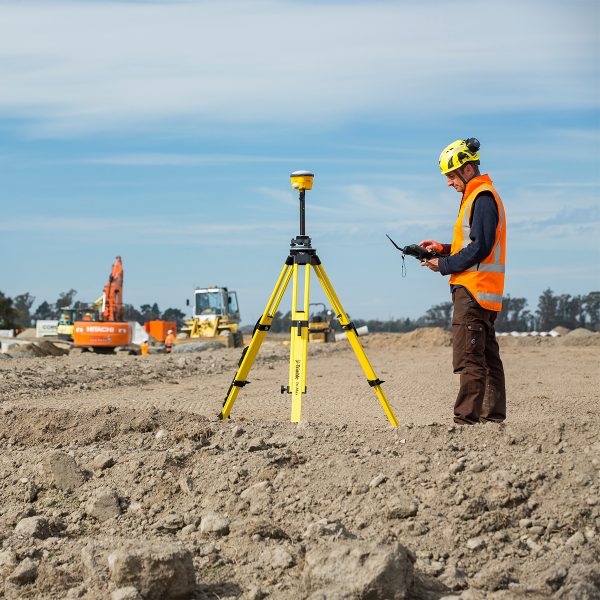

Reliable Base Station
The versatile R780 can also be used as an RTK base, transmitting corrections to rovers and machines via radio or Wi-Fi. Trimble AutoBase™ simplifies the daily setup, just put the R780 on the tripod, switch it on and go.

• GNSS receiver, antenna, dual-band radio and battery in one unit.
• Connected-site enabled with integrated Wi-Fi®, Bluetooth® and dual-band (450 / 900 MHz) radio.
• Easily go from carrying case to range pole, tripod, t-bar or vehicle with a single click so you can get going faster.
• CenterPoint RTX activated and ready to use.
