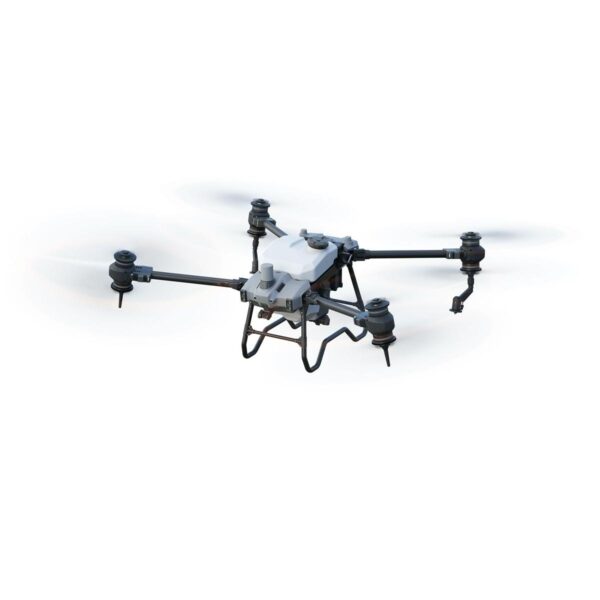

DJI Agras T40

SPECIFICATIONS:
• 50kg spreading payload [1]
• 40kg spraying payload [1]
• Active Phased Array Radar + Binocular Vision
• Dual Atomized Spraying System
• Supports flight spraying / spreading and RC mapping
• Core Modules IPX6K [2]
• EFI Generator 15% fuel saving [3]

• Farmland: 21.3 hectare [4] per hour
• Orchards: 4 hectare [5] per hour
• Spreading: 1.5 tonnes of fertilizer [6] per hour

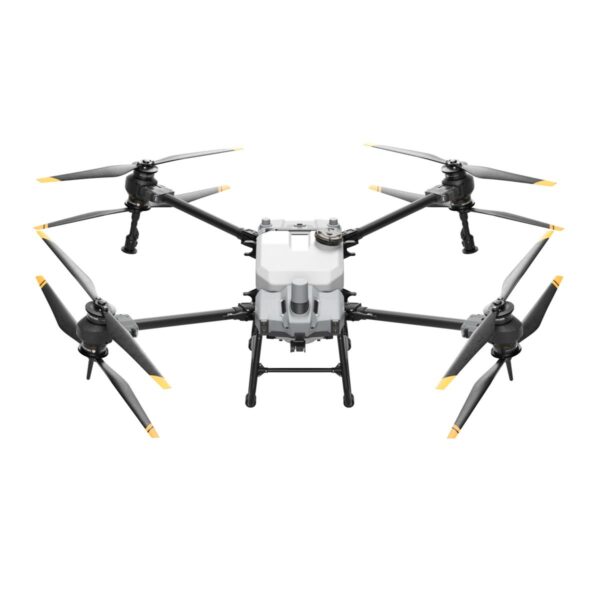

Massive Payload Increase Thanks to the Coaxial Twin Rotor
The AGRAS T40 features a coaxial twin rotor design that increases the payload capacity by 30% with a maximum payload of 50kg [1]. Its foldable design reduces the aircraft size by 70% for greater portability.

Spraying System | Dual Atomization for Even Spraying
• 12L/min
• Magnetic Drive Impeller Pump - the new magnetic transmission design completely isolates the pesticide from the motor, making the aircraft corrosion-proof and ultra-durable. Quick disassembly by hand for easy cleaning.
• Dual Atomized Centrifugal Sprinkler - the dual atomized spray disc ensures even droplets and more efficient pesticide usage. The proprietary centrifugal valve prevents leakage, avoids over-fertilization, and reduces pesticide use while protecting the environment.

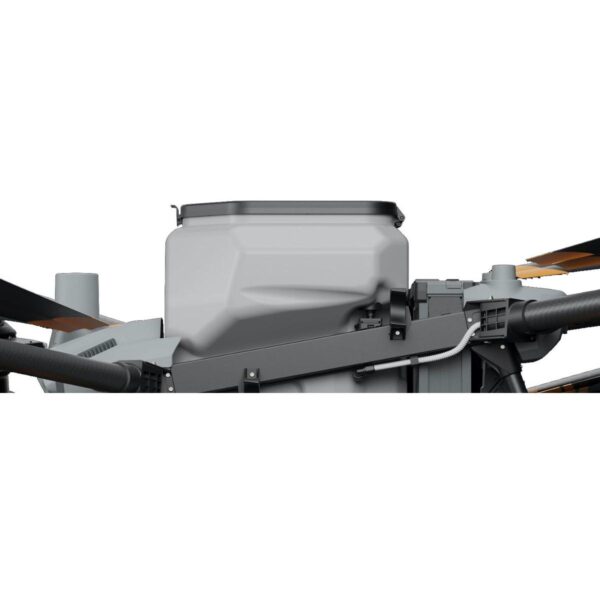

T40 Spreading System (50kg payload [1]) | Enhanced Spreading Efficiency for Superior Performance
• Real-time Weighing - the aircraft is equipped with a weighing sensor that monitors the spread quantity and remaining payload
• Fast Disassembly and Cleaning - the spreading device can be dismantled in 3 minutes and washed with water

Active Phased Array Radar + Binocular Vision | Omnidirectional Obstacle Sensing
The Active Phased Array Radar is incorporated with a binocular vision sensor system to provide 360-degree horizontal omnidirectional obstacle sensing, offering optimal security. The detection distance of up to 50m [8] allows for intelligent terrain following, smooth scaling, and bypassing of multiple obstacles [9].

Mapping, Spraying, and Spreading, All in One
The AGRAS T40 combines mapping, spraying, and spreading functions, while its UHD camera and adjustable gimbal enable easy capture of your desired view. Farmland and orchard images can be captured in real time, and local maps can be generated using the remote controller with the D-RTK 2 Mobile Station. The system detects land boundaries and obstacles automatically, for quicker planning of flight routes over farmland and hilly orchards.

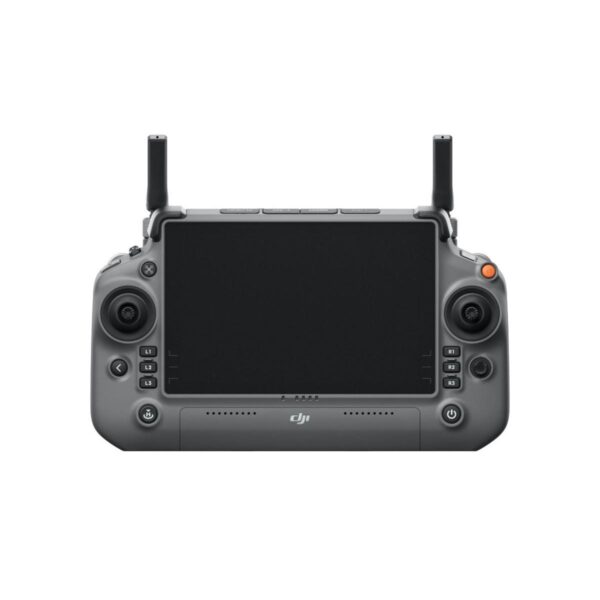

Fully Enhanced Remote Controller for Smoother, Faster Mapping
The 8-core processor makes mapping of 6.67 hectares possible in 10 minutes [10]. Minimizes wasted journeys with intelligent route planning, for greater efficiency. The large 7-inch high brightness screen offers broader view with refined detail. A wide range of custom physical buttons provides flexible control.

Robustly Tested for Ultimate Reliability
The core components are designed to withstand complex and harsh farmland environments. They have passed a host of rigorous tests such as corrosion prevention, high and low temperature, and aging tests, to ensure peace of mind for the user.

Ultra-fast Charging
12000W Multifunctional Inverter Generator with new EFI technology and 15% fuel saving [3]. The charging station produces 1500W AC output, sufficient to power the remote controller, water pump, reloader, lights, and other components. The 30000mAh Intelligent Flight Battery with its standard air-cooled heat sink can cool down rapidly.

D12000iE Multifunctional Inverter Generator
• 30L tank charges 47 batteries [11]
• 1500W AC output
• 9-min ultra-fast charging [12]

T40 Intelligent Flight Battery
• Capacity up to 30,000mAh
• 11.5C while discharging, 6C while charging
• Warranty coverage of 1500 charging cycles [13]

DJI AGRAS Intelligent Cloud
By pairing AGRAS T40 with the Phantom 4 Multispectral, the platform allows you to perform variable spraying / spreading operations with the precision based on the farmland's prescription map. The feature is useful for the spraying of fertilizers on rice, fertilizers and defoliants on cotton crops, and nutrient solutions on soybeans and corn.

1 Data was measured at sea level. The payload weight is greatly affected by the ambient temperature and altitude. The payload weight needs to be reduced by 10kg for every 1,000m increase in altitude. The DJI AGRAS app will recommend the payload weight according to the current status and surroundings of the aircraft. When adding materials, the maximum weight should not exceed the recommended value, otherwise flight safety may be compromised.
2 The core modules include: the avionics module, radio frequency module, breakout board, power distribution board, Electronic Speed Controller, Magnetic Drive Impeller Pump, Dual Atomized Centrifugal Sprinkler, Active Phased Array Omnidirectional / Backward and Downward Radar, Binocular Vision System, UHD FPV camera, and LED supplement light. The IPX6K rating is not permanent and may reduce over time after long-term use due to aging and wear.
3 When charging at 9kW, an EFI generator consumes 15% less fuel compared to a carburetor generator.
4 Data was subject to the operating environment and parameters. T40 flight parameters: consumption rate 15L/ha, spray width 11m, flight speed 7m/s, flight altitude 3m
5 Data was subject to the operating environment and parameters. T40 flight parameters: consumption rate 75L/ha, spray width 4m, flight speed 3m/s, flight altitude 2m
6 Data was measured with urea and subject to the operating environment and parameters. Actual data may vary in operation. T40 flight parameters: consumption rate 149kg/ha, spread width 7m, flight speed 7m/s, flight altitude 3m, spreading disc rotation speed 1,000rpm. The area is free of obstructions and in a regular terrain shape. The fertilizers are prepared in advance and can be loaded quickly.
7 Urea, seeds, and feed have small bulk density. The volume of their particles weighing 50kg will exceed 50L.
8 The effective sensing range varies depending on the material, position, shape, and other properties of the obstacle. Pilots are responsible for flight safety at all times. The obstacle avoidance is only an assisting tool.
9 The Bypass function should preferably be used in environments with sufficient daylight, and incline of less than 20 degrees, small obstacles, and few electrical wires. The function is not recommended for use at night, on a rainy day, or around many electrical wires.
10 The remote controller's mapping time, which can be affected by the firmware version, survey type, and other relevant factors.
11 Charging from 30% to 95%, with the number of batteries chargeable depending on the battery level, idle time, altitude, temperature, and other factors.
12 Charging from 30% to 95%. Factors impacting charging time: the altitude of the charging station and the battery cell's temperature is in the range of 15° to 70°C.
13 Batteries are covered by warranty for up to 1,500 charging cycles or 12 months, whichever ends first.
