Harris Aerial H4C Quad Drone

Harris Aerial H4C Quad Drone
Engineered for Maximum Impact Minimum Footprint

Built Different | Performs Different
Proprietary airframe design, military-grade electronics, and a modular payload bay engineered for every mission profile — from precision agriculture to search and rescue.

Robust Architecture | Zero Compromises
The H4C's proprietary airframe is injection molded from aerospace-grade thermoplastics giving the best durability and strength-to-weight ratio in its class. Every component on the H4C is over-engineered to handle the full-rated 4 kg payload with structural margin to spare.

IP54-rated electronics bay keeps sensitive components protected in rain, dust, and field-level abuse that would destroy lesser platforms.

Payload Superiority | Any Sensor · Any Mission
A dampened modular quick-release mount puts any sensor or payload in the air in 45 seconds. The H4C's 4 kg / 8.8 lb capacity handles the full library of professional payloads — survey, mapping, thermal, multispectral, and custom cargo — without singular dependence on any one manufacturer.

Configurable aux power (48V vbat, 24/28V, 12/14V, 5V) and a full data interface stack (Ethernet, UART, CAN, GPIO, HDMI, USB-C) mean any sensor in your kit goes airborne the same way — bring your own, mount it, fly.

Smart Power System | 50 Minutes Max Endurance
The H4C operates with two intelligent 12S smart batteries in parallel — 8 Ah each, 16 Ah combined — delivering redundant power distribution and a class-leading 50-minute flight time unloaded, with a duration of over 24 minutes with a maximum 4 kg payload.

Hot-swap compatible. Battery installation and removal takes under 30 seconds in the field, maximizing operational tempo between sorties.

Compact by Design | Capable by Default

Unfolded (Prop Tip-to-Tip)
1510 mm / 59.4"

Unfolded Height
470 mm / 18.5"

Folded (L × W × H)
414 × 380 × 238 mm

Empty Weight
8.15 kg

Max Takeoff Weight
12.15 kg / 26.8 lbs

IP Rating
IP54 (expected)

Operating Temperature
-20°C to 49°C

Service Ceiling
12,000 ft / 3,658 m AMSL

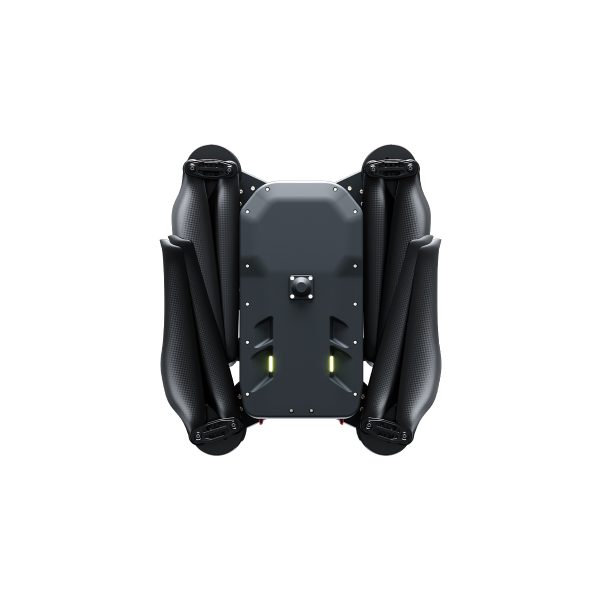

The H4C's folded profile allows single-operator transport in a standard hard-shell case. From transit to airborne in under 90 seconds — built for operations where time is a tactical asset.

Smart Batteries
Intelligent batteries with built-in BMS, featuring active monitoring and cell balancing.

RTK Enabled GNSS Onboard
Provides survey-grade precision down to centimeter-level. Natively supports NTRIP workflow.

Active Terrain Following
The built-in rangefinder provides feedback to actively track terrain and correct altitude in real time.

Onboard Compute
Built-in mission computer for GNSS-denied navigation, obstacle avoidance, and custom applications.

Built for Every Mission
From precision agriculture to critical infrastructure inspection, the H4C's versatility makes it the platform of choice for professionals who can't afford failure.

• Precision Agriculture
  Sub-2cm GSD mapping at 120m AGL with any compatible multispectral payload. Generate NDVI maps, identify crop stress zones, and plan variable-rate applications in a single flight.
• Survey & Mapping
  RTK-precision aerial surveys for construction, mining, and land management. Capture photogrammetry data over hundreds of acres per flight at centimeter accuracy.
• Search & Rescue
  Up to 50-minute endurance enables wide-area SAR operations with thermal imaging payloads. Cover terrain inaccessible by ground in minutes. Operate in -20°C environments.
• Public Safety
  Deploy rapidly to emergency scenes with 15km C2 range and BVLOS capability. Carry communications relays, spotlights, or supply drops in a single airframe.
