Harris Aerial H6 Electric Drone

Harris Aerial H6 Electric Drone
Adaptable Powerful Versatile

Built Different | Performs Different
Patent-pending battery rack, modular power conversion, and a foldable hexacopter frame engineered for the missions where reliability is non-negotiable — from precision survey to search and rescue.

Unparalleled Modularity | One Airframe · Three Power Formats

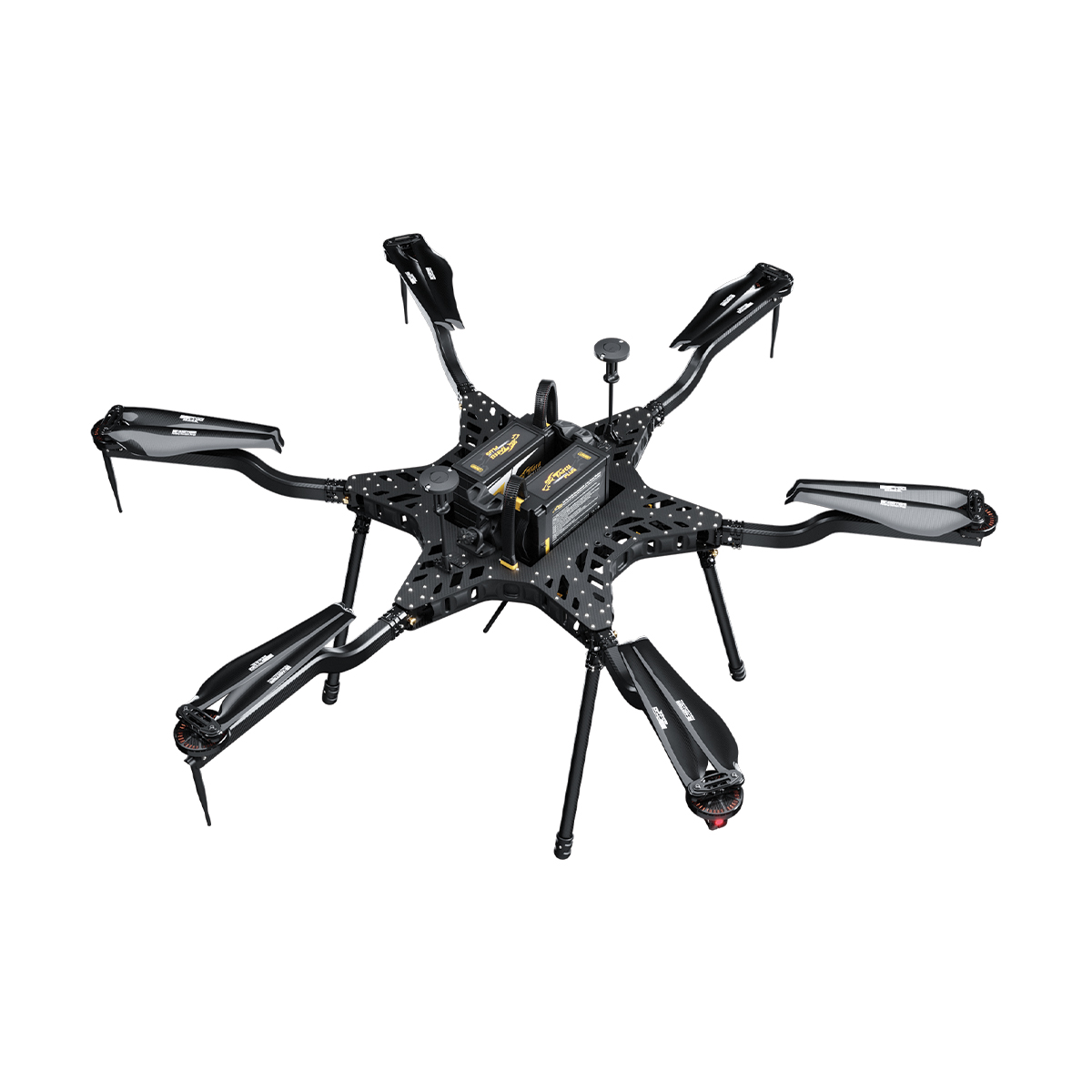

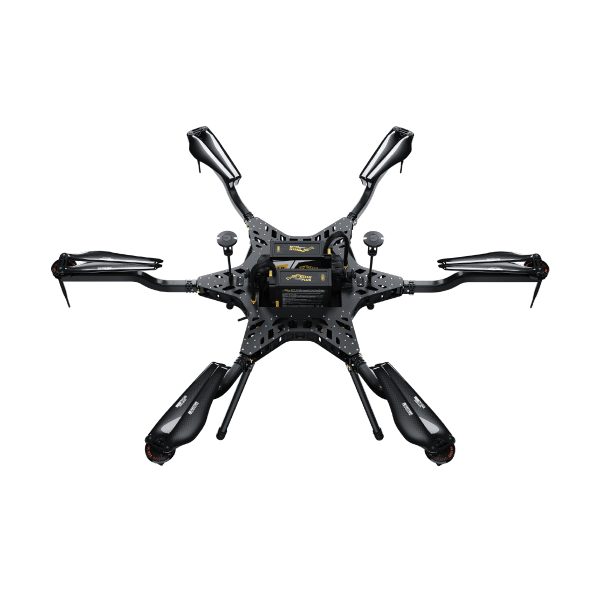

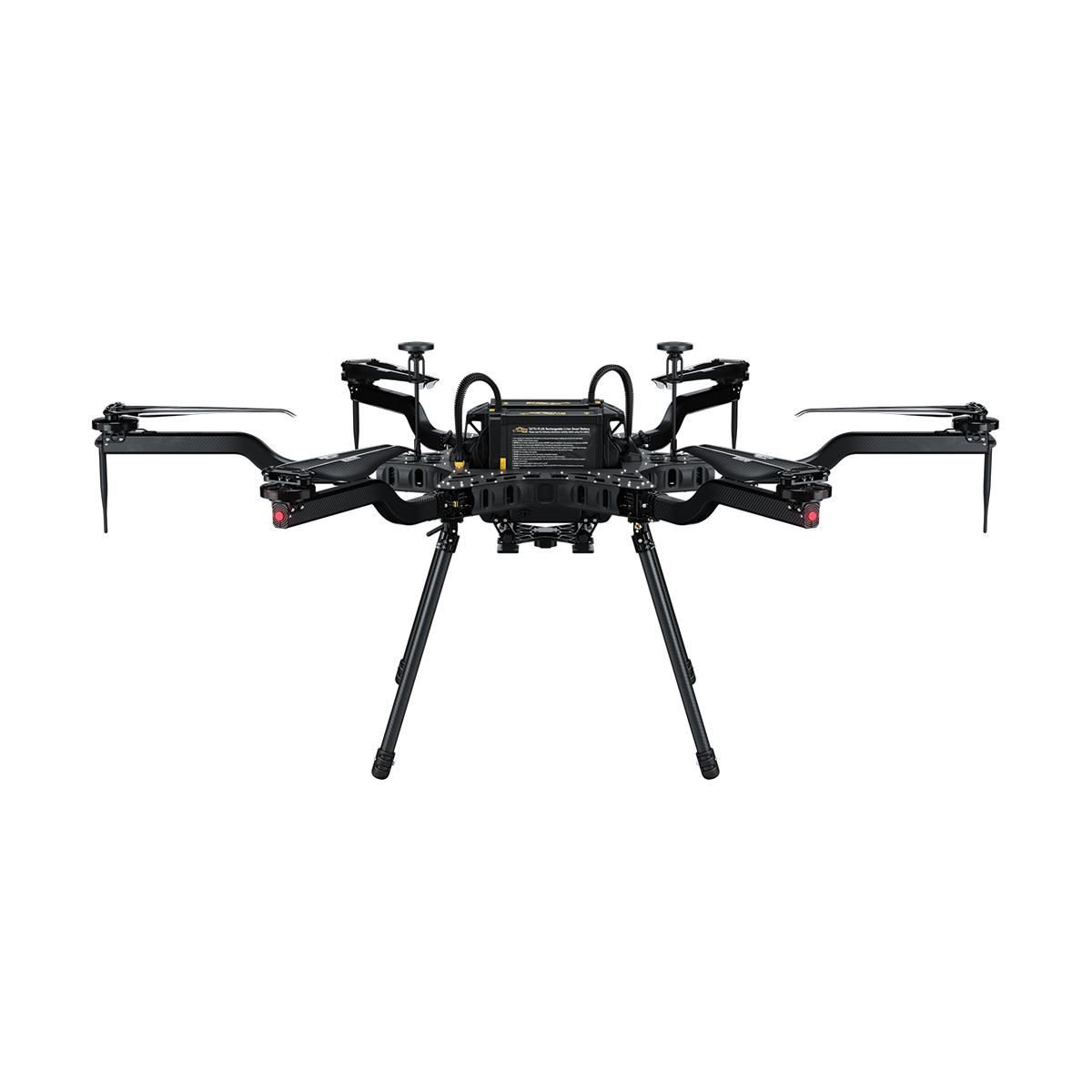

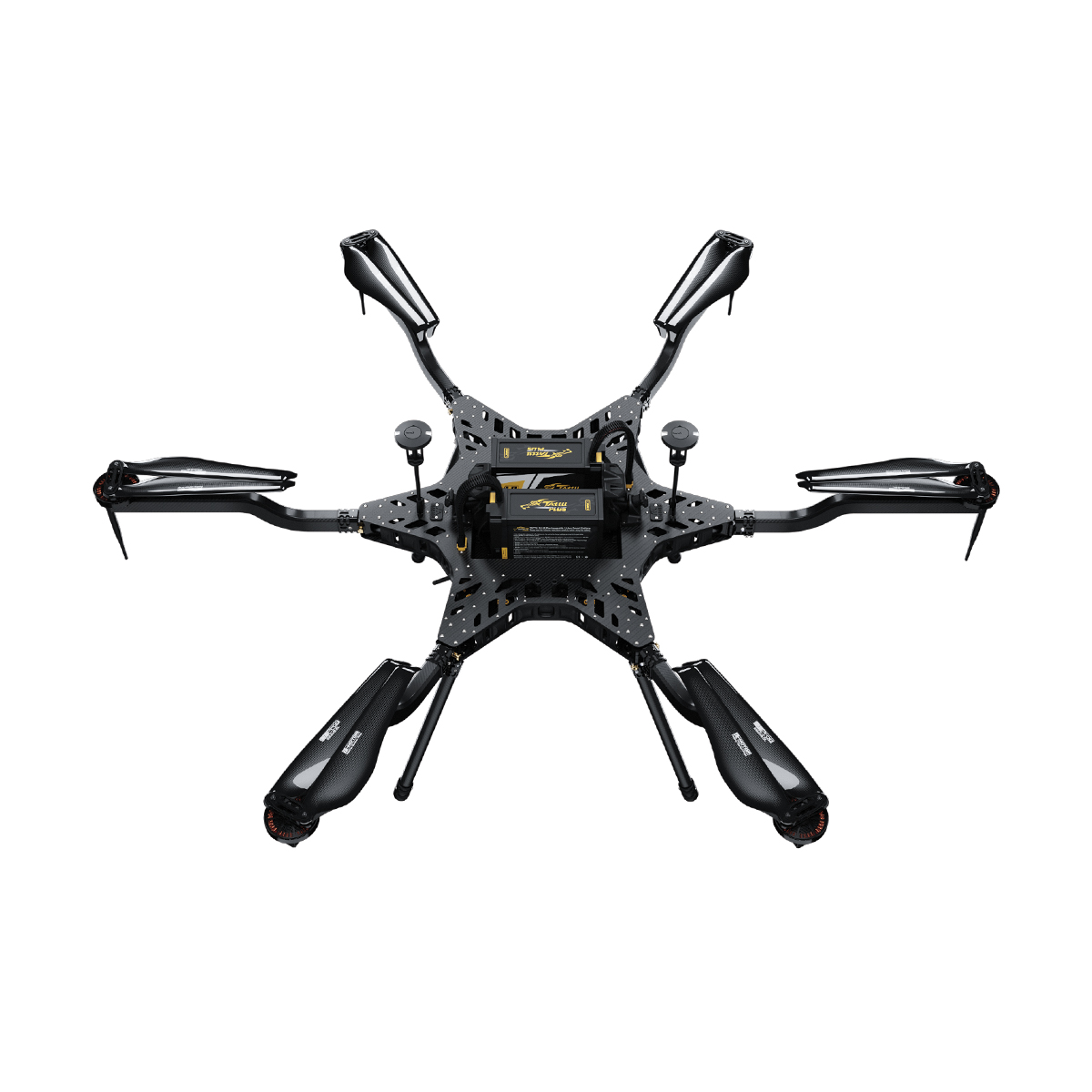

Built on Harris Aerial's flagship hexacopter frame. The foldable design shrinks for easy transport and converts to Gas-Electric (Hybrid EFI) or Hydrogen-Electric (Hydrone) power formats in minutes — no airframe swap required.

Aerospace aluminum and carbon fiber construction with triple-redundant IMU and parallel battery power for mission-critical reliability.

Exceptional MTOW to Structural Mass Ratio: the airframe weighs just 9.8 kg empty while supporting a massive 25 kg Maximum Takeoff Weight (MTOW), ensuring maximum power is dedicated to your payload.

Superior Integration | 8 KG of Mission-Ready Capacity
Equipped with a dampened modular quick-release mounting system. The H6 Electric handles up to 8 kg (17.6 lbs) of payload — ideal for LiDAR arrays, precision agriculture sensors, multispectral cameras, and heavy thermal imaging gimbals.

12V / 24V / 48V regulated aux power and full UART / Ethernet / CAN / GPIO / USB data interfaces handle any sensor in the HA Payload Library.

Dual RTK GNSS for centimeter-level positioning accuracy — essential for precision agriculture, targeted DoD drops, and highly accurate aerial surveying.

Smart, Redundant Energy | 32,000 mAh of Stored Power
Our patent-pending battery rack holds two smart 12S1P 16,000 mAh Lithium Polymer packs — 32,000 mAh total — supporting up to 48 minutes of flight with the ability to rapidly swap battery racks via quick-release plungers.

AS150U-F anti-spark connectors. 250-cycle service life. Battery voltage and current monitored in real time by any selection of our ground control stations.

Rapid Field Execution | From Case to Airborne in Minutes

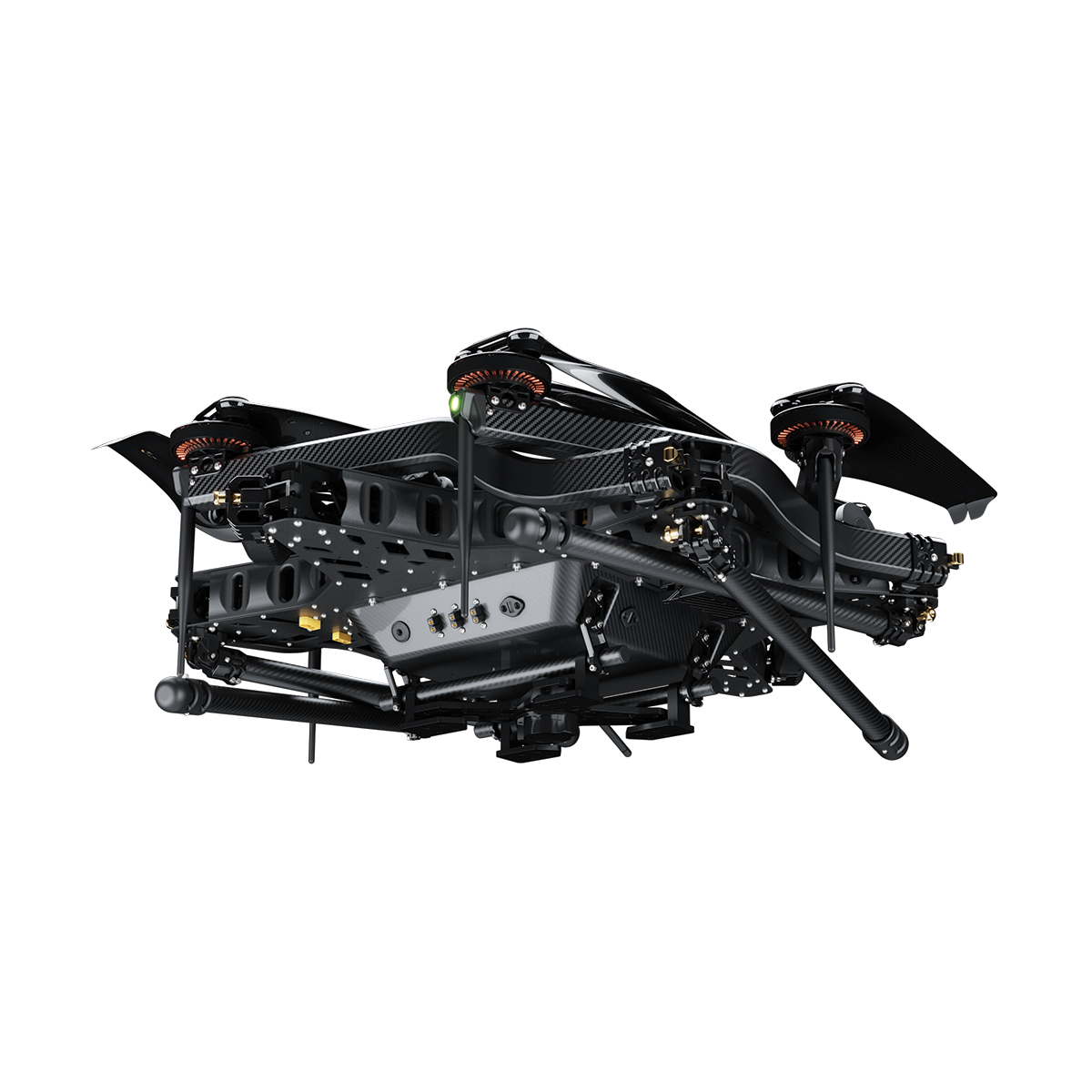

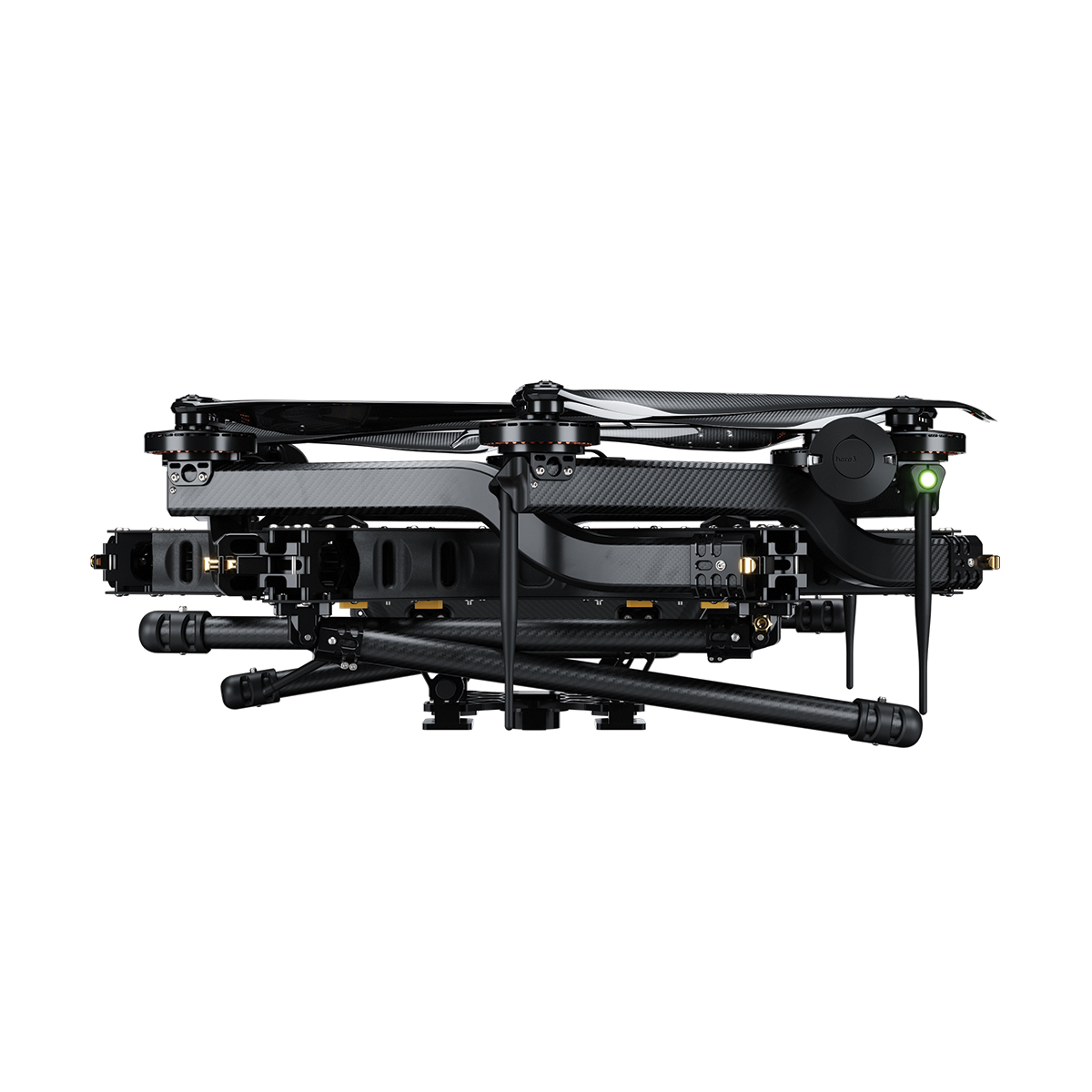

Folding arms, propellers, and landing gear allow the H6 Electric to fold down into its case for hassle free transport. The H6 can be deployed from the back of a vehicle to flight ready in under 2 minutes and vice versa.

The case features form fitting foam, multiple lifting handles, and a convenient pull out handle with rolling wheels for ease of use.

Case Dimensions: 901 × 901 × 495 mm

Electric Efficiency | Capable by Default

Deployed (Prop Tip to Tip)
2,373 mm

Deployed Height
793 mm

Transport Case (L × W × H)
903 × 903 × 808 mm (35.5" × 35.5" × 31.8")

Empty Weight
9.8 kg (21.5 lbs)

Max Takeoff Weight
25 kg (55 lbs)

IP Rating
IP43

Operating Temperature
-20°C to 49°C

The H6 Electric folds into a single hard-shell case for vehicle transport and deploys to flight-ready in under two minutes. Designed for the operator who treats deployment time as a tactical asset.

Built for Every Mission
From precision aerial survey to search-and-rescue operations, the H6 Electric's versatilely makes it the platform of choice for professionals who can't afford failure.


• Surveying & Mapping
  Compatible with LiDAR and DSLR sensors for highest-resolution point clouds. 48-minute endurance enables hundreds of acres per mission at survey-grade accuracy.
• Search & Rescue
  Thermal imaging and real-time communications enable wide-area SAR with low-light heat signature detection. Operate down to -20°C in adverse environments.
• Payload Deployment
  Precision payload release for supply drops, scientific experiments, or emergency cargo delivery. 8 kg capacity with sub-meter drop accuracy.
• Industrial Inspection
  Carry high-resolution imaging or thermal payloads for utility, infrastructure, and asset inspection. 12,000 ft service ceiling supports tower & turbine work.
