Hylio AG-272 CP-D-272 Drone

Hylio AG-272 - Unlock Precision Agriculture

Key Specifications:

• 18.0 Gallons Total
• Up to 40 Foot Swath Width
• Up to 50 Acres/Hr @ 2 GPA Rate

Next Level Features | Built for Work

Key Features:

Control
Hylio's AgriDrones can be flown in either autonomous or manual flight control modes. You can command up to three UAS from a single ground station as they complete fully automated operations. Also, each AgriDrone comes with an RC controller for optional manual mode.

Reliability
We design and build our systems to stand up to the real-life challenges of field work. With aerospace grade materials, redundant sub-systems, and easily serviceable components, our AgriDrones will do the heavy-duty work, day in and day out.

Monitor
From an array of sensors, you have real-time access to vitals such as GPS position, flow-rate, altitude, and more. All flight and treatment data is stored within your account so that you can access as-applied maps, maintenance data, and more within our interface.

Obstacle Avoidance
The AgriDrones detect and avoid obstacles in real-time using multiple radar sensors. This feature is active in both autonomous and manual control modes. You can fly with confidence in complicated areas thanks to this safety feature.

Real-time Kinematic Positioning
For many applications, standard GPS accuracy is enough. For applications where you need centimeter-level precision, you can utilize Hylio's RTK base station solution. The GPS units equipped on the AgriDrone are already compatible with the base station; simply set the station up, click, "connect", and then you'll have access to RTK corrections.

All-in-one Controller
All of Hylio's AgriDrones come equipped with Hylio's GroundLink Controller. The GroundLink Controller is designed and built in-house. It is an all-in-one, NDAA compliant ground station solution. Featuring a 13.3" Windows-based tablet computer and 2.4 gHz radio  integrated into a rugged, ergonomic controller which let's you seamlessly access all autonomous and manual controls on one platform.

Features & Accessories - AG-272

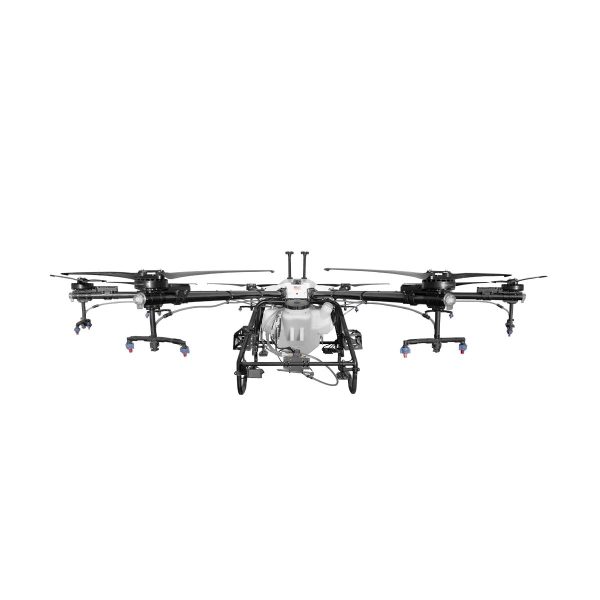

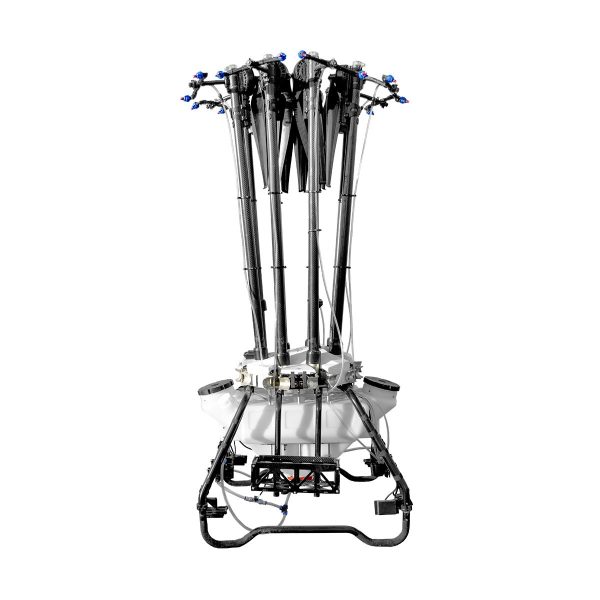

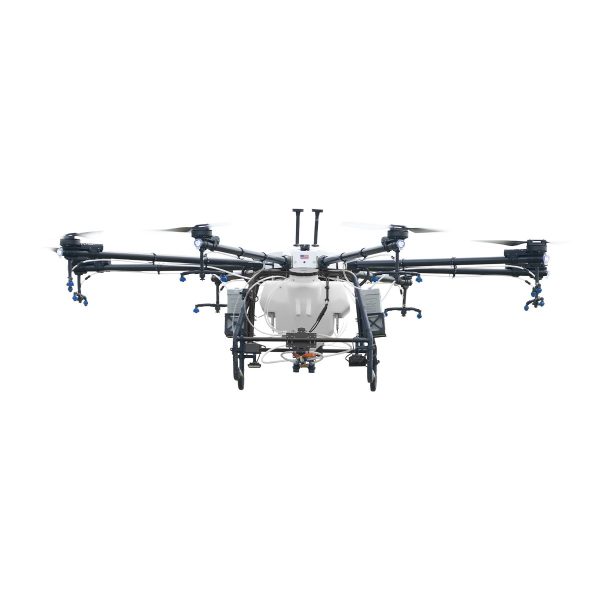

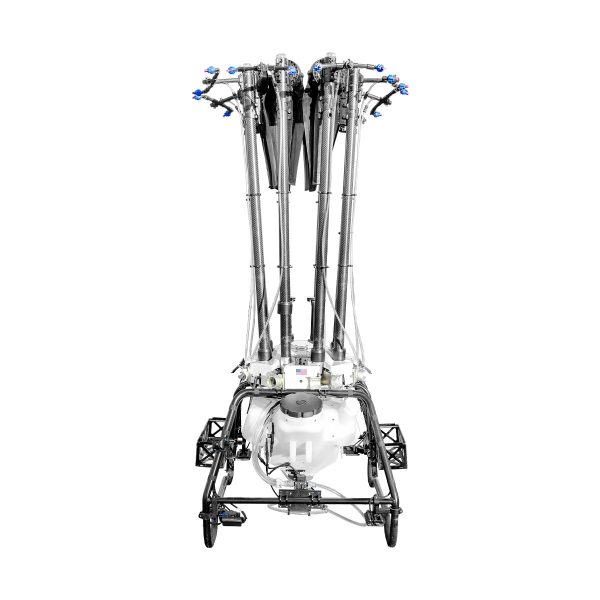

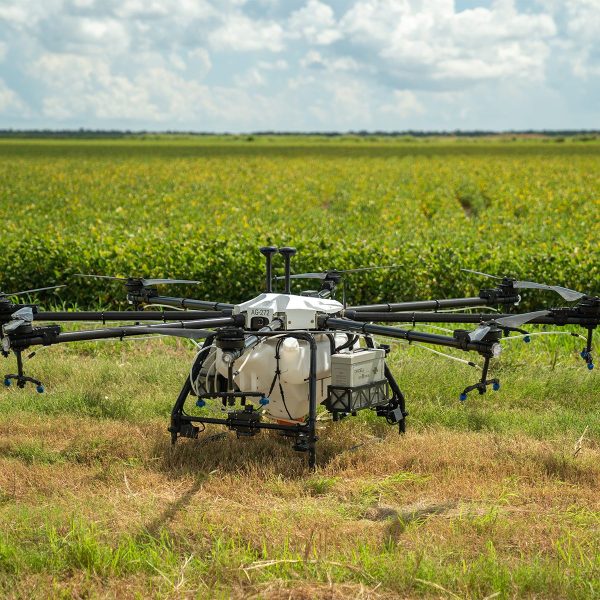

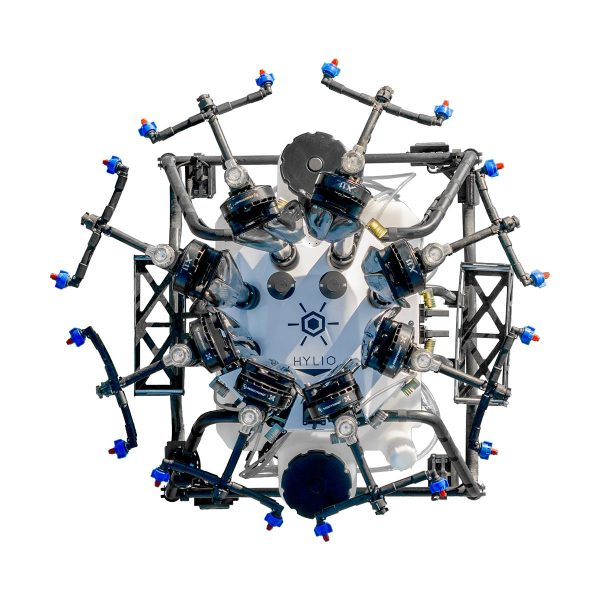

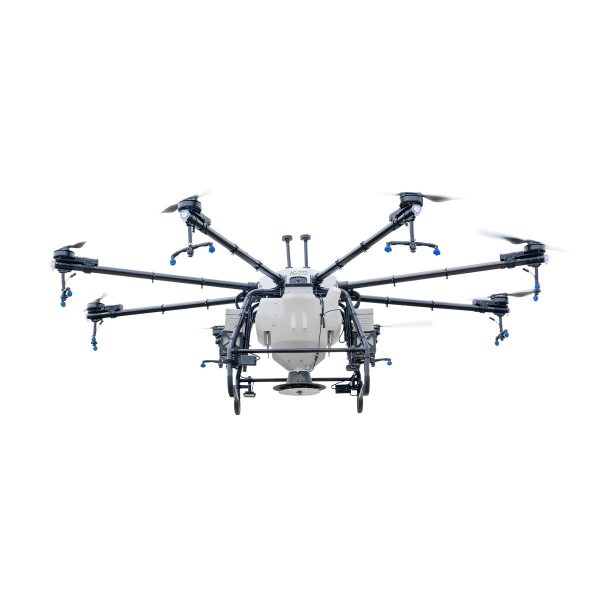

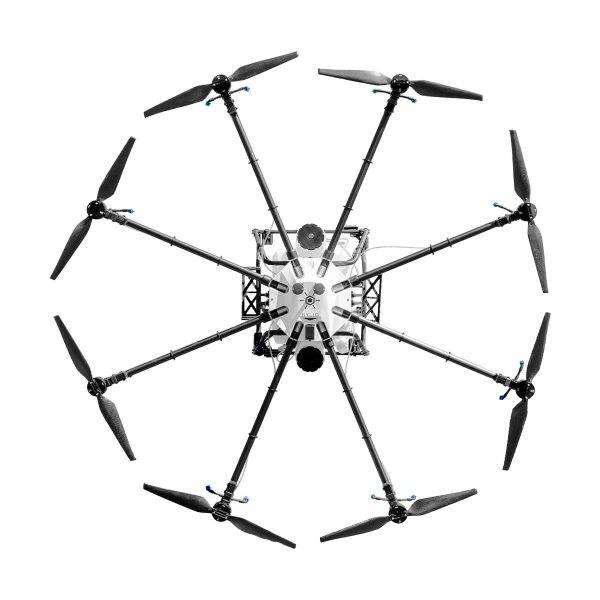

AG-272 AgriDrone
Fully autonomous, eight-rotor UAS platform designed and manufactured by Hylio, Inc. Comes equipped with a high-precision spraying system consisting of one 18.0 gallon tank, TeeJet nozzles, and electronic flowmeters.

Obstacle Avoidance Radar
The AG-272 is equipped with multiple wide-angle radars pointing laterally, upwards, and downwards. These radars give the AG-272 a near-complete sphere of radar detection and avoidance.

HD FPV Video Streaming
The UAS comes equipped with a camera that allows the operator to view high definition video in real-time on the included Hylio GroundLink Controller device.

Long Range Radio
2.4 Ghz radio telemetry modem (built into the Hylio GroundLink Controller) which can communicate directly with one, or multiple, Hylio UAS. The operator can communicate with the UAS without the need for internet connection.

RTK Compatible GPS
The AG-272 is equipped with two GPS units which are both compatible with RTK correction data. Please note that the RTK ground station component is sold separately.

Drone Toolkit
A convenient tool-bag that contains tools the operator needs to operate and maintain the UAS. Includes a torque wrench, pliers, various screwdrivers, a digital level, and other useful tools.

Handheld GPS Marker
A proprietary, handheld GPS device that integrates directly with AgroSol and allows the operator to conveniently mark field boundaries, obstacles, and other landmarks.

Hylio GroundLink Controller
The AG-272 comes equipped with Hylio's GroundLink Controller. The GroundLink Controller is designed and built in-house. It is an all-in-one, NDAA compliant ground station solution. Featuring a 13.3" Windows-based tablet computer and 2.4 gHz radio  integrated into a rugged, ergonomic controller which let's you seamlessly access all autonomous and manual controls on one platform.

Smart LiPo Batteries
The AG-272 utilizes two 42 Amp, 51.8V (2175.6 Watt/hr) lithium-polymer batteries simultaneously for system power. The batteries include LED indicators to display charge state.

Automatic LiPo Chargers
Two-channel lithium polymer battery charging units that are capable of charging a pair of batteries (2 batteries) simultaneously. Each charger can charge a pair of batteries in approximately 30 minutes. Please note that the charge rate is dependent on variety of factors including voltage and capacity of the power source, temperature, and level of discharge. The chargers are ergonomic and rugged, making them ideal for industrial operations.

Access to AgroSol Software
Purchase includes lifetime access to Hylio's proprietary agricultural UAS ground control software (GCS) called AgroSol. The operator will not have to pay any recurring fees for access to the basic AgroSol GCS features.

Comprehensive Training
Purchase includes full access to comprehensive training materials (primarily video tutorials and written documentation) that cover the maintenance and handling of the UAS, precision agricultural knowledge and techniques, UAS regulations, and safety.

Domestic Delivery
Purchase includes freight delivery to any location within the continental U.S. For international shipping, extra charges apply.

Unlimited Remote Support
Hylio values all of its customers and has a diverse team of agricultural, engineering, and computer science experts that are immediately available via phone, email, and video chat during normal business hours to provide remote technical support. Normal business hours are Monday through Saturday from 9:00 AM Central Time to 6:00 PM Central Time.

One Year Warranty
Includes a one-year warranty that covers component defects which fall under the manufacturer's (our) responsibility. Inquire for more specifics on the warranty terms and conditions.

FAA Regulatory Onboarding
Hylio assists with Part 137 onboarding as a complimentary service along with your purchase of any of our UAS. We provide thorough guides as well as example documents for every step of the process. Essentially, you need to fill out and turn in application documents to your local Flights Standards District Office (FSDO) and eventually FAA officials will visit you for an interview/test to finalize your application. Thanks to some changes made by the FAA in 2023, the process is now faster, but can still take several months so generally speaking, the sooner you start this, the better!
