Pipe Trekker A-200X Package

At a Glance
• Battery operated
• Hybrid power options
• Durable construction
• Software integration
• High definition camera
• Magnetically coupled drives
• Fully submersible
• Modular add-ons

Add-ons and Enhancements
Not all jobs are the same. Be ready for various types of deliverable requirements, pipe diameters, and conditions in the field with add-ons ranging from powered reels and truck mounted solutions to various tire options and scanning technology. To learn more about our add-ons, contact our experts who can get you started with a system.

IN THE BOX:
• PTZ HD camera
• Weatherproof controller

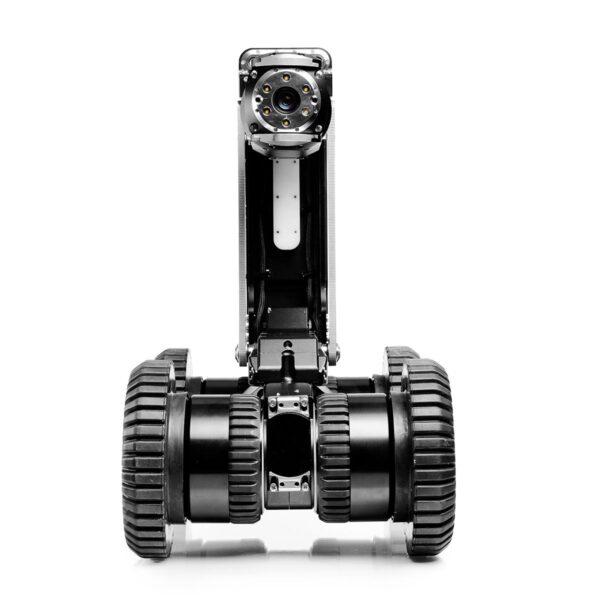

• Motorized arm
• 3 rubber wheel kits
• 512Hz sonde
• Floodlights & laser scaler
• 200m tether
• 2 pelican cases

Optional Add-ons
• Automatic reel
• Up to 310m tether
• Rear camera
• Pneumatic tires
• Tablet style controller

SPECIFICATIONS:

Dimensions (smallest and largest configuration)
• Width: 6 - 12.2in
• Height: 5.5 - 20.6in
• Length: 28.2 - 29.5in
• Weight: up to 64.6lbs
• Materials: stainless steel, machined aluminum, sapphire lens cover
• Water Depth Rating: 164ft
• Minimum Diameter: 8in
• Maximum Diameter (with camera head centered): 36in
• Operating Temperature: 23° - 104°F
• Speed: up to 12m/min
• Warranty: 1 year – parts and labor (optional 2-3 years)
• Sensors: incline, roll, leak, pan/tilt, distance counter
• Transmitter: sonde
• Deployment: lift brackers on side, lift points at front and back

Crawler Electrical System
• System Voltage: 19.2VDC, LiFe 6000mAh
• Battery Run Time: up to 5 hours
• Hydbrid Power Option Available (operate continuously)
• Hybrid Power: 75VDC on tether via AC input through automatic reel
• Drives: magnetically coupled, 2x DC gear motors with gear train
• Steering: skid style
• Pull Force: 130lbs
• 2-3 spare ethernet ports

Tether
• Max Length Available: 1,100ft
• Diameter: 6.5mm
• Break Strength: 1600lbs
• Conductors: 1 twisted pair, copper
• Termination: epoxy, with strain relief jacket material; polyurethane

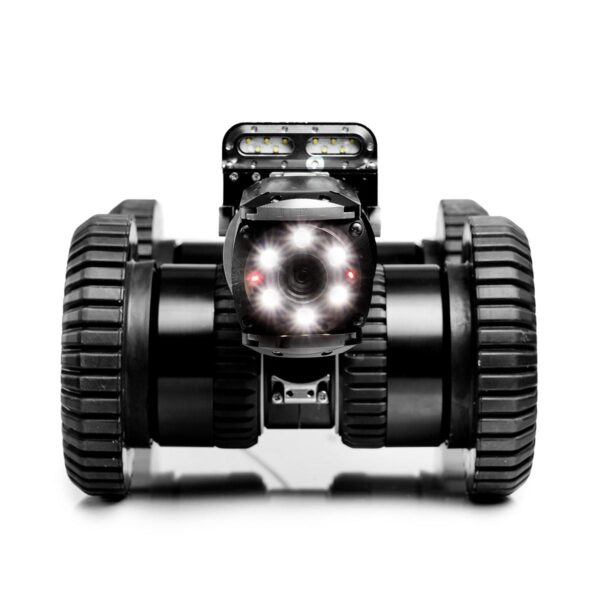

Camera
• Resolution: 1080p/2MP
• Pan: 360° Continuous
• Tilt: + or - 140° (280° total)
• Zoom: 10x optical, 120x digital
• Focus: auto or manual
• Exposure: auto or manual
• Lights: 900 lumens; auxilary: 1500 lumens

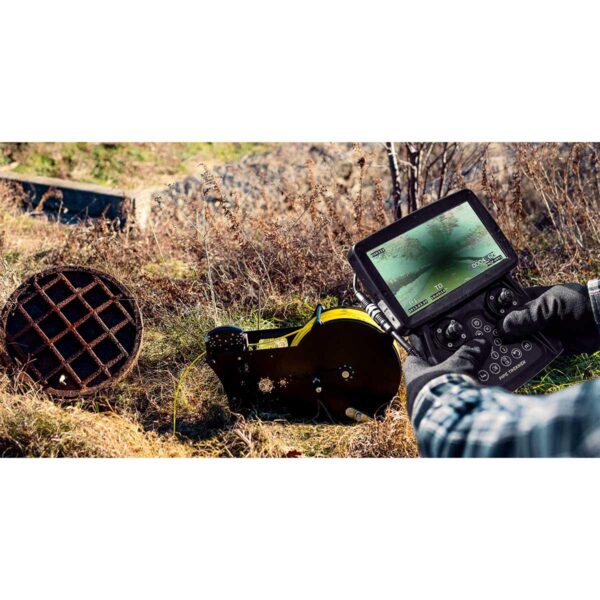

Controller
• Weatherproof, splashproof
• Display: 7in LCD
• Joysticks: hall effect
• Outputs: HDMI, ethernet, USB, SD
• Battery Life: up to 5 hours / charging during operation for continuous
• Software: Bridge, WinCan or other software optional integrations
