Radiodetection Flexitrace Tx-Energized Pushrod 164′

Name: Radiodetection Flexitrace Tx-Energized Pushrod 164' - Frontier Precision Shop
Brand: Damage Prevention & Locating Devices
SKU: 10/TRACE50-GB
Price: 2231.00 USD
Availability: InStock

Call to OrderFrontier Precision is currently adding items to the Shop, so please contact us at 800-359-3703 to order or for more information on this item.

Only available in WA, OR, ID, MT, WY, CO, HI, and AK.

Sondes Accessories

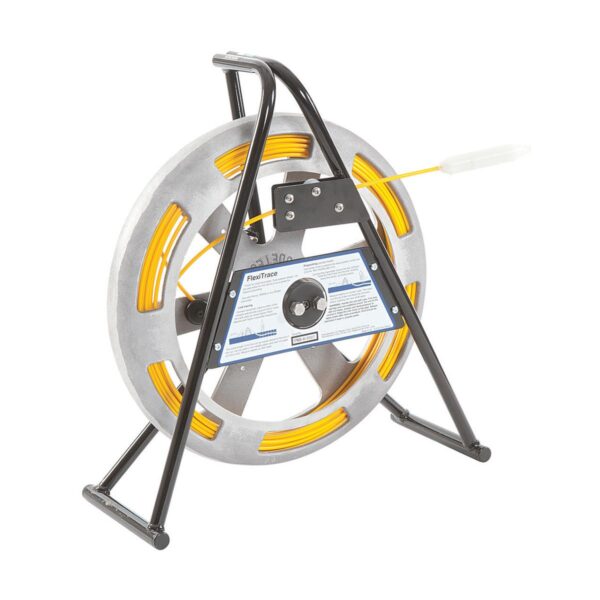

The FlexiTrace reel holds 164′(50m) or 260’ (80m) of small diameter rod. The rod itself can be energized by a Radiodetection transmitter* and inserted into pipes as small as 12mm. It is used with a Radiodetection locator to find and trace small-diameter plastic pipes etc. Unlike using a sonde with a Flexrod, the entire length of the FlexiTrace can be detected from above ground.

Add to wishlist

SKU: 10/TRACE50-GB Categories: Damage Prevention & Locating Devices, Geospatial, Utility & Marker Locators / Accessories

Description
Additional information
Downloads

FLEXITRACE™

The Radiodetection FlexiTrace is a flexible rod containing conducting wires running the full length of the rod, with a transmitting sonde at the end. FlexiTrace is inserted into pipes and ducts where size restricts the use of larger diameter sondes and used to trace the line of a pipe, duct or to locate blockages and collapses to a depth of 3m.

To use the FlexiTrace, the rod or sonde can be energized by using a Radiodetection transmitter and located using a suitable Radiodetection locator.

By connecting the output of the transmitter across both stud terminals of the FlexiTrace, only the sonde will be energized and can be used for pinpointing blockages etc.

By connecting the transmitter output to one of the stud terminals and a ground through an earth stake, the entire length of rod can be energized, enabling the tracing of the length of FlexiTrace rod inside the pipe or duct.

*When using a Tx-5 or Tx-10 transmitter, some power restrictions apply.
