Seafloor Systems Hydrolite SF30/200-26/9 Dual Frequency Echosounder

Call for Price

Seafloor Systems Hydrolite SF30/200-26/9 Dual Frequency Echosounder

Our newest Dual Frequency Echo Sounder is finally here! This upgraded system delivers improved performance and expanded capabilities for your hydrographic survey operations. The Hydrolite SF30/200-26/9™ adds dual-frequency capability to our trusted Hydrolite line, offering reliable, easy-to-use operation with seamless integration and added flexibility.

Categories: PAGE-Seafloor, All Geospatial, All Unmanned, Drones / ROV, MGIS, Seafloor, Survey, Uncrewed Surface Vessels, USV Brand: Seafloor

Description
Downloads

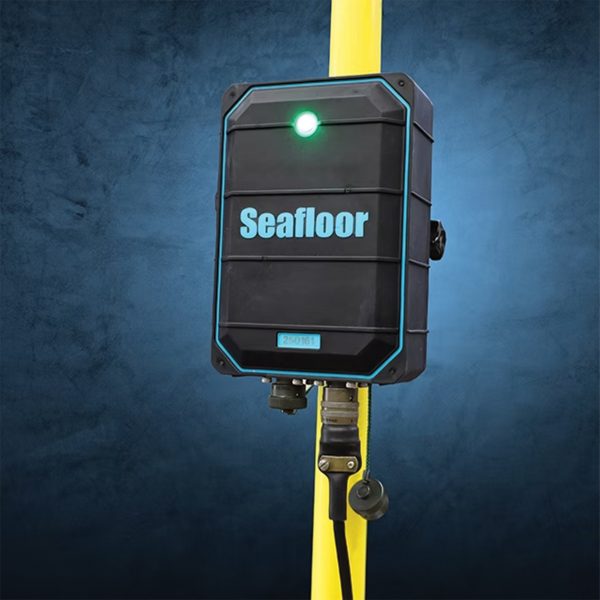

Seafloor Systems Hydrolite SF30/200-26/9 Dual Frequency Echosounder

INSTANT DEPLOYMENT
Easy Plug and Play with auto ranging

BROWSER-BASED INTERFACE
WebUI (Web User Interface): No downloads required

REAL-TIME DATA OUTPUT
Continuous output via Bluetooth or RS-232 to your data collector

IP-65 RATED HOUSING
IP-65 compliant housing designed for harsh field conditions.

Specifications:

Frequency: 30 kHz / 200 kHz
Beam Width: 200 kHz: 9° Conical 30 kHz: 7-beam honeycomb, 26°
Ping Rate: 1 Hz
Depth Accuracy: 1 cm
Output Formats: NMEA0183 (DB1), ASCII, Sonarmite DFX
Range: 1.3 – 675 ft (0.4 m – 200 m)
I/O: Serial (DB9), Bluetooth, Wi-Fi
Power: Internal Battery, 14.4 V / 45 Wh
Compatibility: Trimble, Leica, Topcon, Carlson, Hypack, QPS, PDS
Topside Unit: 1 lb (0.45 kg), 6.9 × 4.5 × 3.4 in (175 × 114 × 86 mm)

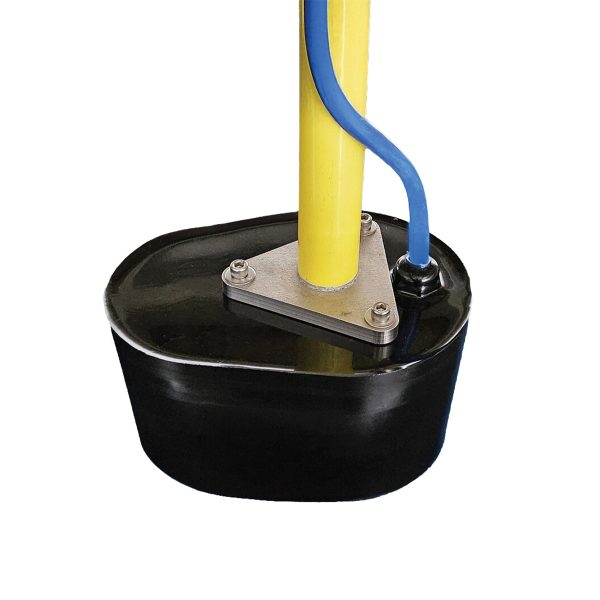

Transducer: 6.5 kg (14 lb.)
Transducer Pressure Rating: Up to 10m

Seafloor Systems Hydrolite SF30/200-26/9 Dual Frequency Echosounder Data Sheet
