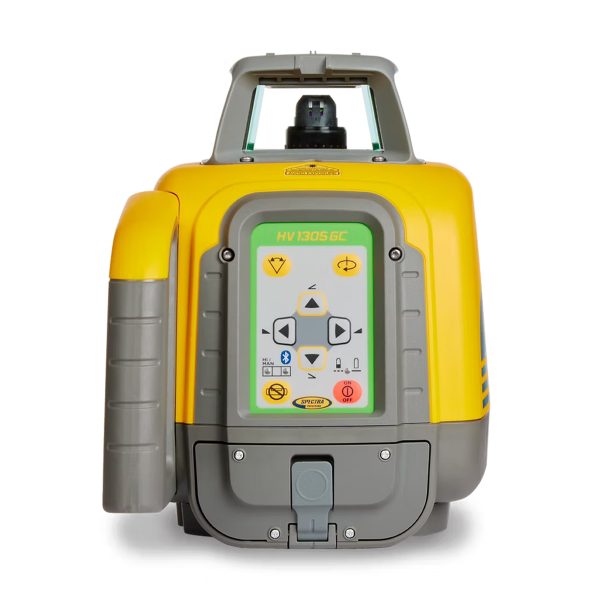

Spectra Precision HV1305GC-BSC Pro Version Laser
Call to OrderFrontier Precision is currently adding items to the Shop, so please contact us at 800-359-3703 to order or for more information on this item.
Green means go bigger with the new HV1305GC from Spectra!
The automatic self-leveling Spectra Precision® HV1305GC green beam laser is the most rugged, cost-effective lasers that provide both horizontal and vertical alignment. Even in harsh jobsite conditions, the lasers deliver consistently reliable and accurate performance, enabling you to work faster and smarter.
High visibility green beam is four times more visible than standard red beam lasers allowing work at longer distances and in brighter conditions. Automatic self-leveling increases productivity with fast setups. Line scan and beam plunge feature for easy drywall layout. Rotor vial for easy and accurate vertical plumb set-up.
Key features & benefits:
- Accuracy 1.5mm @ 30 m (1/16 inch @ 100 ft)
- Working range of up to 1200m (4,000 ft) diameter with HL760U
- High-visibility beam – easily visible even in brightly lit conditions
- Height of Instrument Alert - unit stops rotating when jarred to avoid erroneous readings
- Rotation selection of 0,10,100, 200,300 or 600 RPM
- Remote control or remote control app allows operation of all laser functions from anywhere on the job site
- Bluetooth connection allows laser control with a smartphone
- Extremely durable and portable with a 5 Year warranty
Specifications:
Leveling Accuracy
± 1.5 mm/30 m, 1/16“ @ 100 ft.
10 arc seconds
Operating Diameter w/HL760
Typ.1200 m (4000 feet)
Rotation
Preset 0, 10, 100, 200, 300 and 600 rpm Adjustable in 10 rpm increments >100rpm
Scan Angles
Preset 5°, 15°, 45° and 90°
Adjustable in 5° increments
Laser Type
510 – 530 nm
Laser Class
HV1305GC Class 2
HV1305GC Class 3
(Class 2 available in Europe)
Self-leveling Range
Typ. ± 5° (± 8.7%)
Leveling Indicators
LED flashes
Radio Range (HL760)
up to 100 m (330 ft)
Power Source
10,000 mAh NiMH battery back
or 4 x 1.5V D alkaline batteries
Battery Life
HV1305C up to 45 hours
HV1305GC up to 30 hours
Battery Charging Time
< 10 hours
Operating Temperature
-20°C to +50°C (-4°F to +122°F)
Storage Temperature
-25°C to +70°C (-13°F to +158°F)
Tripod Attachments
5/8 x 11 horizontally and vertically
Dust and Waterproof
Yes - IP66
Weight
3.49 kg (7.7 lbs)
(incl. Battery pack)
Low Voltage Indication
LED battery indicator
Product Dimensions
240mm x 280mm x 180mm
(9.45 in x 11.02 in x 7.09 in)
Warranty
5 Years
