Trimble ST30-BASIC-HW Geospatial Smart Target

Trimble ST30-BASIC-HW Geospatial Smart Target

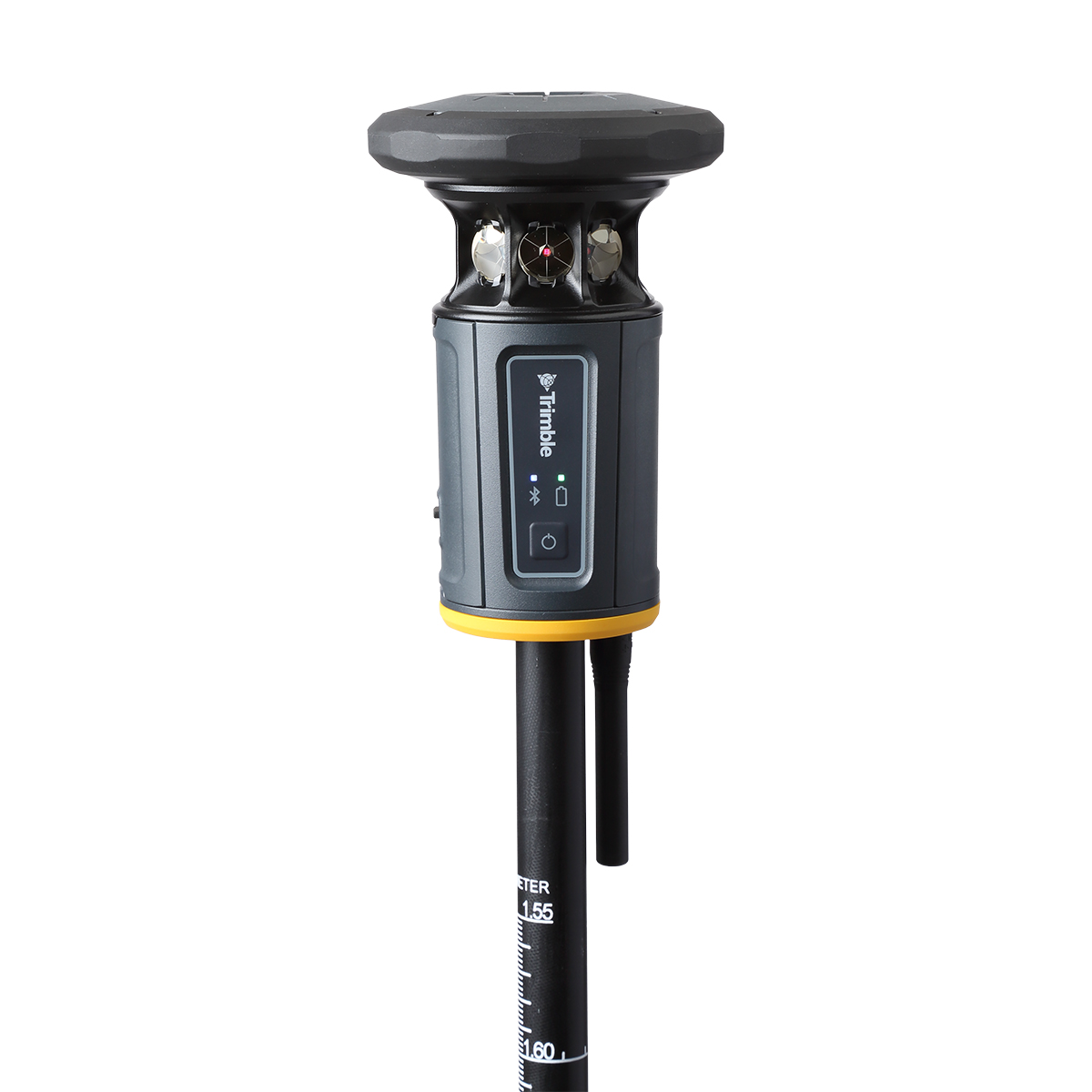

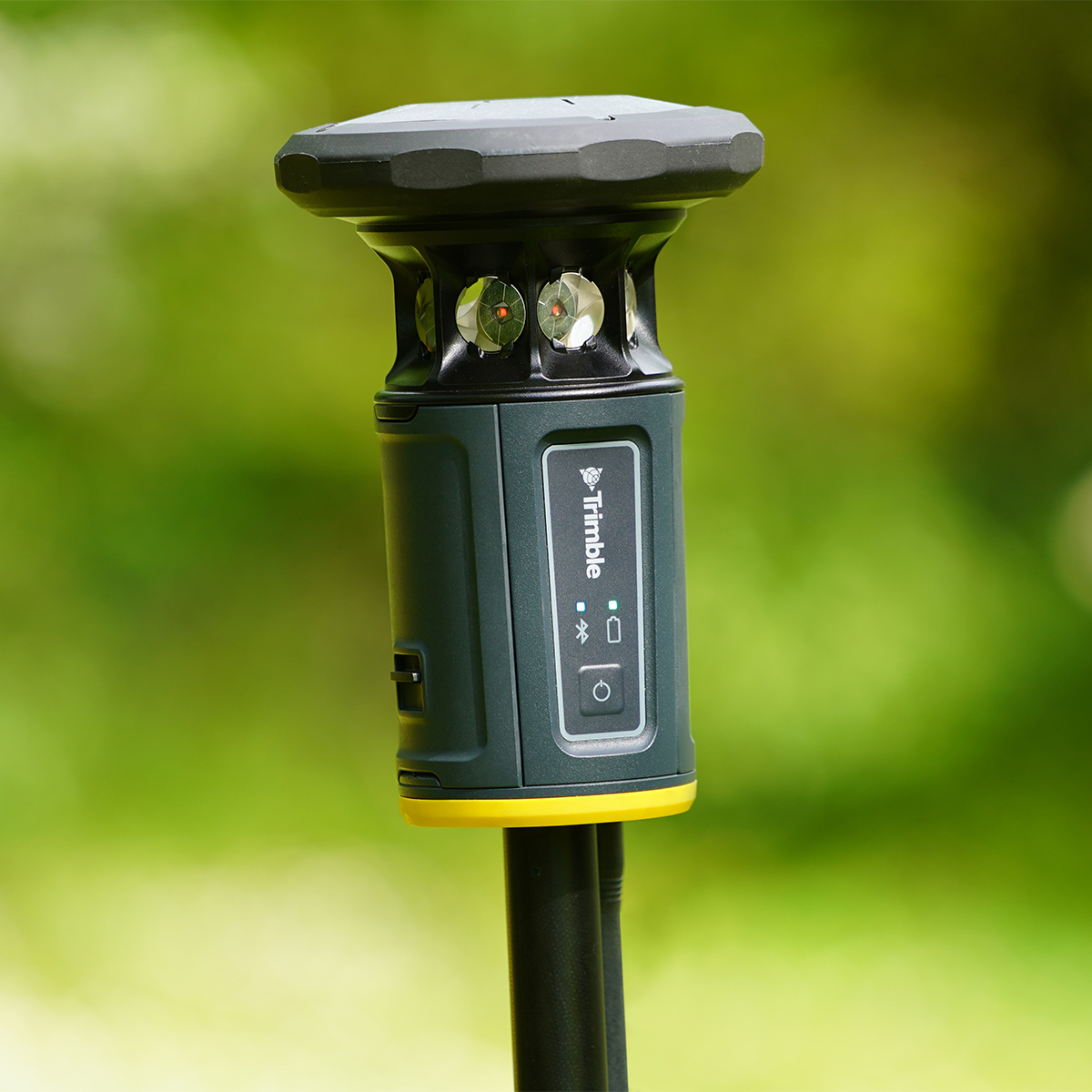

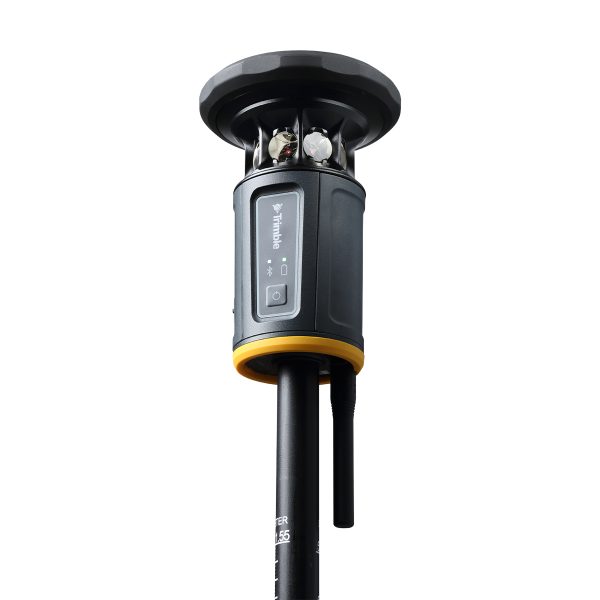

A new standard for building construction layout has arrived. The Trimble® ST30 smart target delivers a breakthrough in how data is captured on the job site. By combining automatic rod height, tilt compensation, and a high-accuracy 360° prism, the ST30 streamlines your process, avoiding rod height blunders, reducing total station setups, eliminating interruptions, and enabling crews to move faster with confidence.

This is what smart looks like.
With technology designed to boost accuracy, minimize errors and maximize efficiency, the ST30 revolutionizes your workflows, helping you work smarter and more productively on every job.

Forget the rod and focus on the job.
With robust Trimble Inertial Platform™ (TIP™) tilt compensation for optical and GNSS workflows, you can survey faster without leveling the rod. Measure accurately in tight, inaccessible spots with peak efficiency.

Correct rod height, always.
Avoid costly rod height errors. Rod height is automatically synced and monitored in Trimble FieldLink field software, providing peace of mind. The fully adjustable rod enables the target to be set at any height.

Best-in-class optical tracking.
Don’t waste time with lock issues. Advanced Trimble active tracking, target ID and Trimble GeoLock™ technology deliver highly accurate, efficient tracking, reducing downtime on busy job sites.

Connected workflow.
Designed to work seamlessly within the Trimble ecosystem, the ST30 integrates with Trimble RTS series robotic total stations, Trimble tablets, Trimble FieldLink field software, Trimble Connect cloud software and Trimble FieldLink office software. The result is a more continuous, connected way to measure - helping you capture accurate data the first time and carry that confidence through every phase of the job.

Accelerate Layout Workflows

The ST30 transforms optical layout for building contractors, helping to minimize errors and accelerate workflows for crucial design stakeouts and as-built verifications. Built with innovative Trimble technologies, the ST30 delivers unmatched precision and reliability on the toughest job sites, saving time and eliminating expensive rework.

• Faster layout: Increase your work pace with robust Trimble Inertial Platform™ (TIP™) IMU-powered tilt compensation. Accurately layout, even in tight or inaccessible spots, without leveling the rod to complete tasks faster.
• Rapid, reliable tracking: Maintain confident workflows with Trimble active tracking technology, Trimble GeoLock™ technology and target ID. Quickly reacquire total station lock due to line-of-sight issues, even on the busiest worksites.

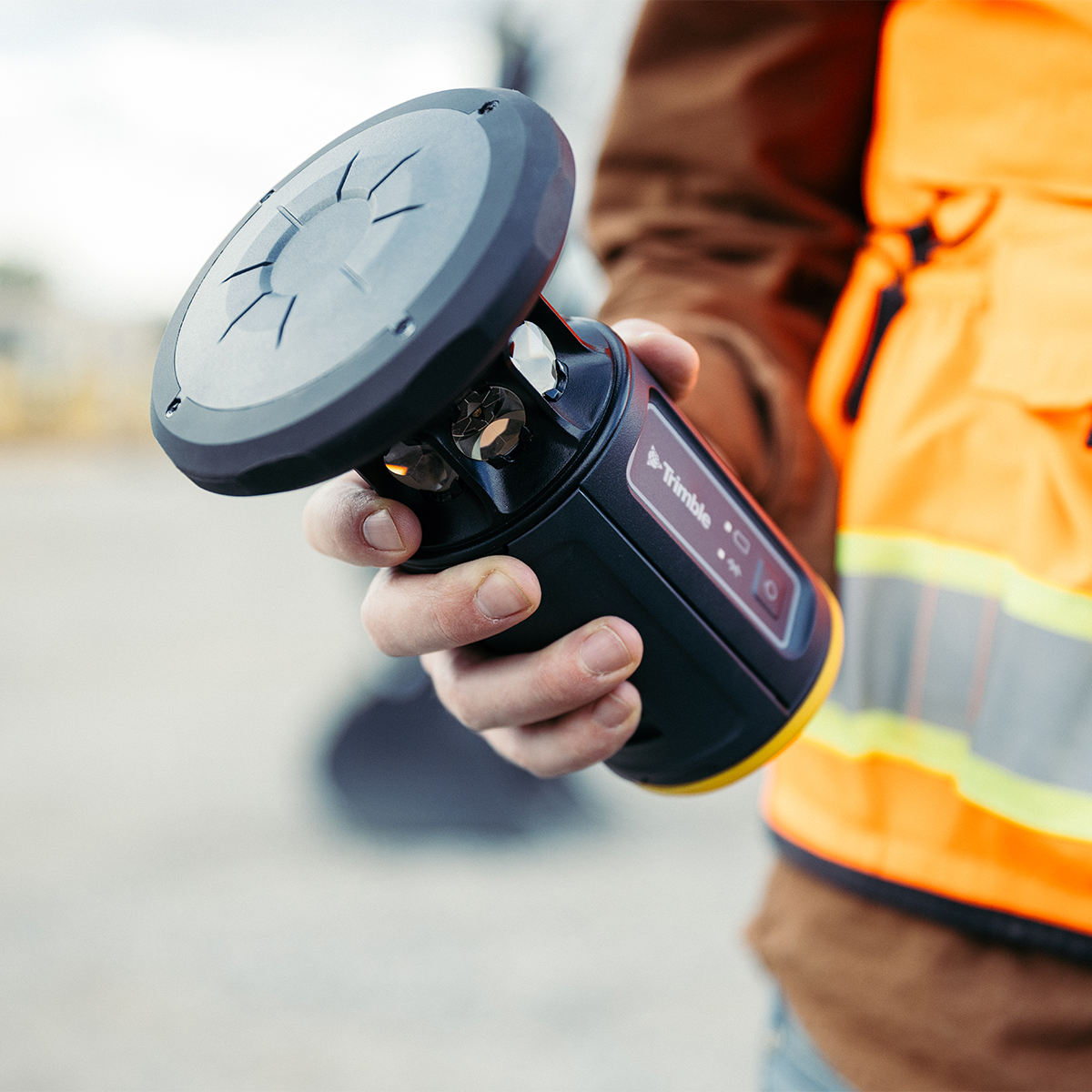

• A 360° prism you can trust: Featuring a rugged exterior and protected active tracking LEDs, the 360° prism delivers accurate, dependable performance in all environments.
• Automatic rod height: Automatic sync and monitoring in Trimble FieldLink field software avoids costly rod height errors. The fully adjustable rod enables the target to be set at any height.

Confidence in every direction.

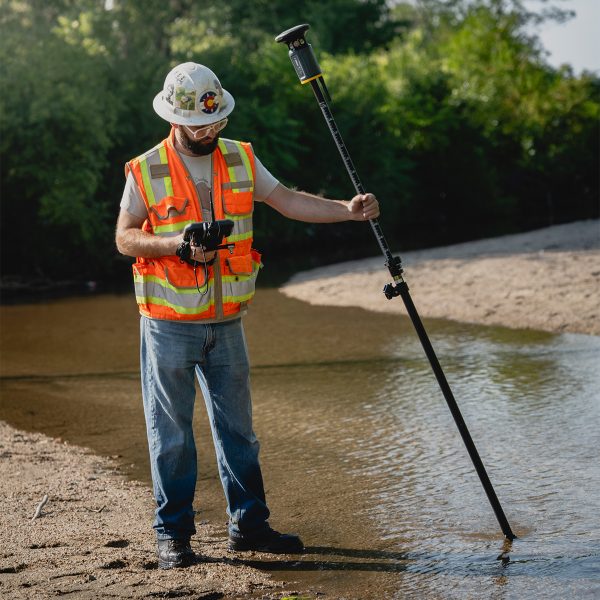

Measure in any direction: on the ground, above your head, right side up or upside down, all without leveling the rod.

Precise measurements.
Eliminate bubble and human handling errors with tilt-compensated shots for accurate positioning.

Effortless accuracy.
Achieve precise measurements without the complexities of manual adjustments, thanks to automated rod height, tilt compensation and precision-engineered 360° prism.

Always locked on.
Trimble RTX® corrections, active tracking, target ID, and GeoLock work together for seamless tracking, even on the busiest jobsites.

Key Specs

Optical tip performance:
H: TS + 2.5 mm + 0.3 mm/° tilt | V: TS + 1 mm + 0.1 mm/° tilt

Rod height accuracy:
± 0.6 mm
