Trimble X9-100-01-GEO X9 3D Laser Scanning System
The power to do more, on your terms.

The Trimble® X9 3D laser scanning platform leverages proven Trimble technology to deliver the range, accuracy, speed and sensitivity you need to do more. With flexible licensing plan options, choose the scanning functionality that fits your project needs.

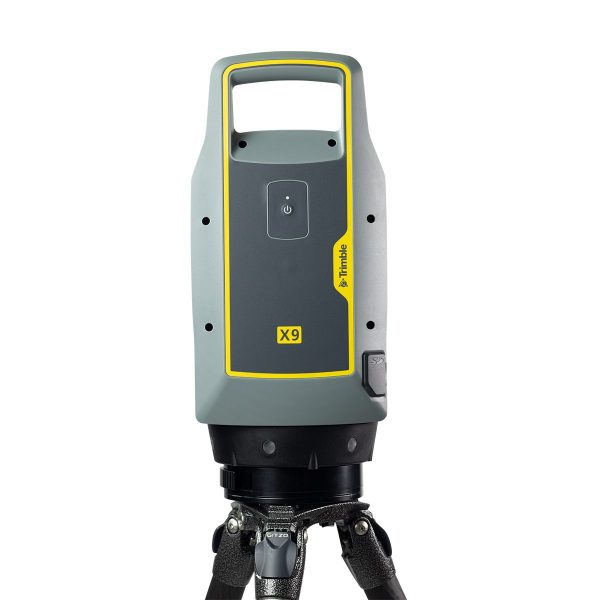

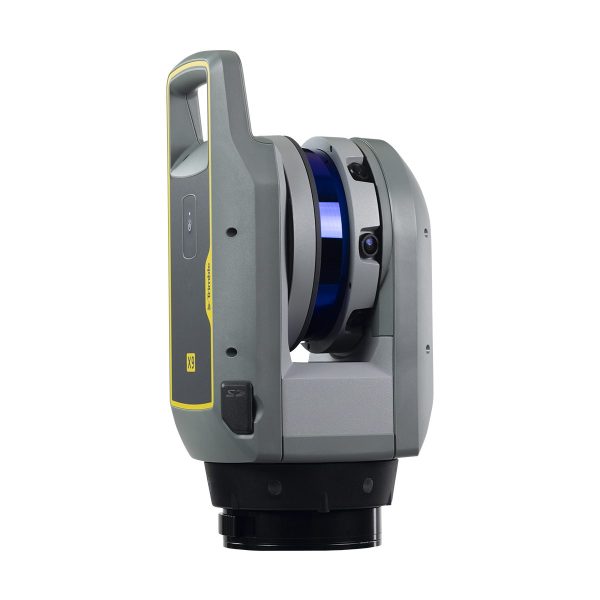

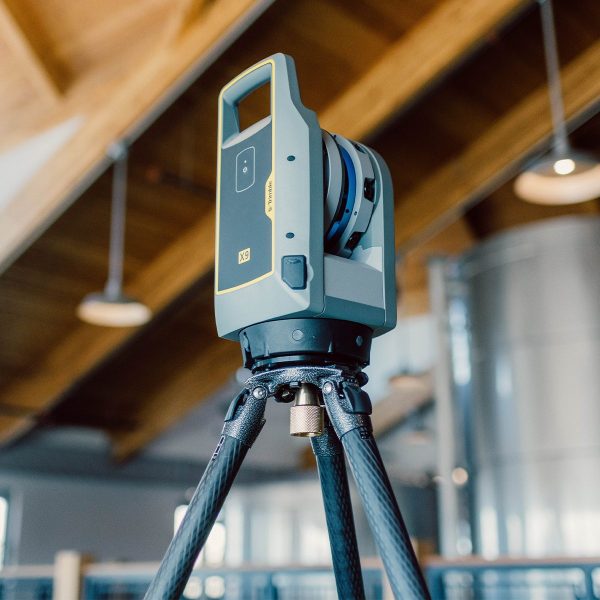

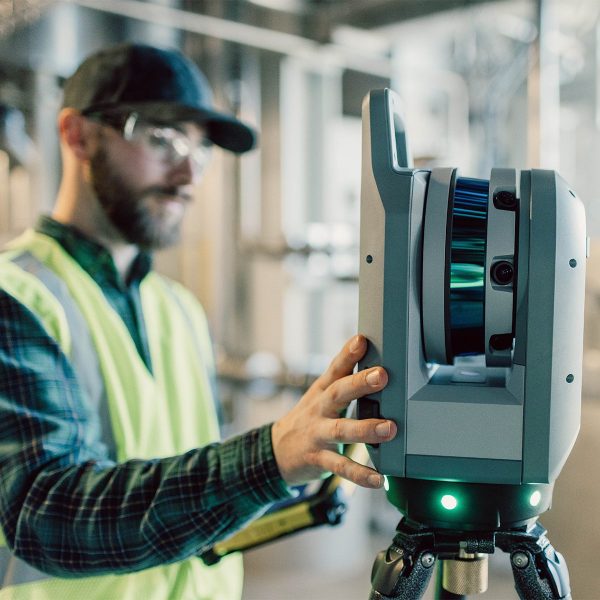

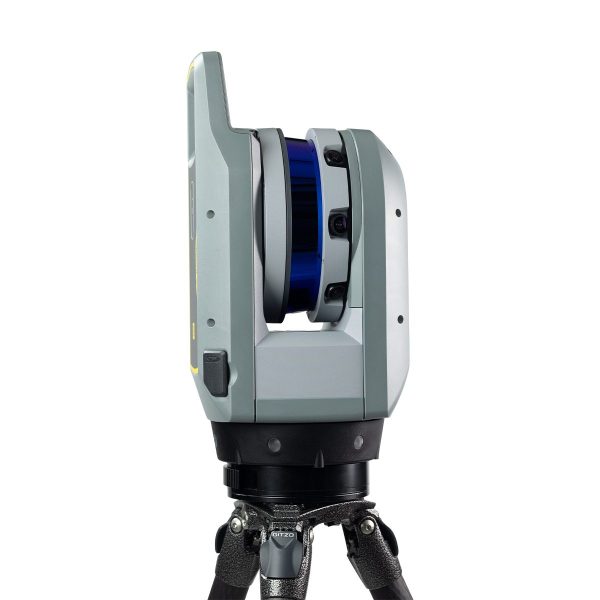

Trimble X9 3D Laser Scanning System

Versatile, advanced scanning and imaging you can depend on.

Robust and configurable 3D laser scanning system you can depend on. The X9 is a versatile reality capture solution for surveying, building construction, oil and gas, rail, forensics, monitoring, tunneling, mining and more.

Built on proven Trimble laser scanning technologies that include automatic instrument calibration, self leveling and laser pointer for georeferencing, the Trimble X9 with Trimble Perspective software, delivers from field to office with confidence.

Effortless
Smart auto-calibration and self‑leveling optimized to increase productivity and function. Flexible operation with tablet, smart phone or one‑button workflow. Flexible purchase options that give you the control to scan how you like. Upgrade or downgrade to meet your needs.

Reliable
Configurable scanner speed and range of 500 kHz–80 m and 1000 kHz–150 m. High sensitivity with all scan modes to capture dark and shiny surfaces fast. Robust IP55 rating for dust and water jet protection with enclosed center unit. Survey grade self-leveling with a wide compensation range of ±10° for in-field productivity.

Field-ready
Simple and efficient field workflows suitable for all users. Powerful Trimble® Perspective field software to easily manage and validate projects onsite with auto-registration. Laser pointer for georeferencing and single point measurements.

Specifications:

  • Scan speed Up to 1000 kHz
  • Scan range 0.6 m to 150 m
  • Scan times < 1 min to 6 min
  • Auto-calibration No targets or user interaction for accuracy on every scan
  • Self-leveling <3" with tilt compensation range of ±10°
  • Environmental protection IP55
  • Operating temperature -20°C to +50°C (–4°F to 122°F)
  • Ease of use Intuitive Trimble Perspective workflows
  • Licensing plans Adjust your license to your needs
