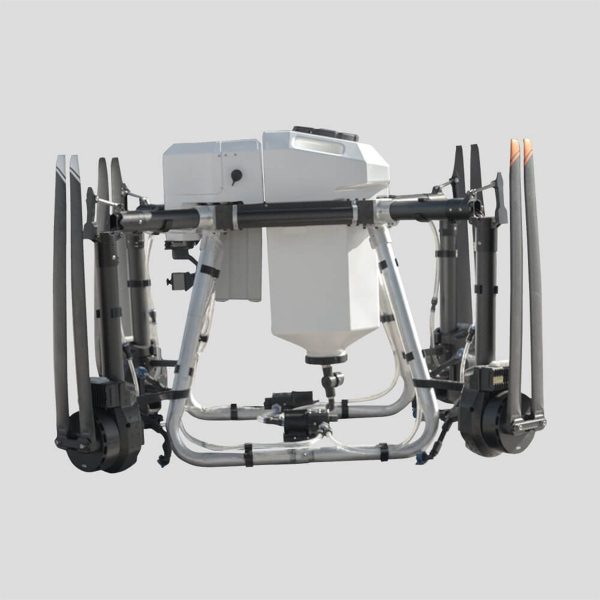

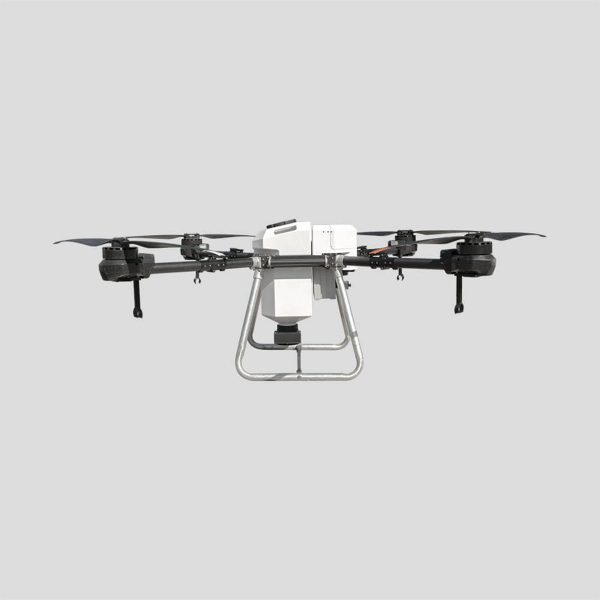

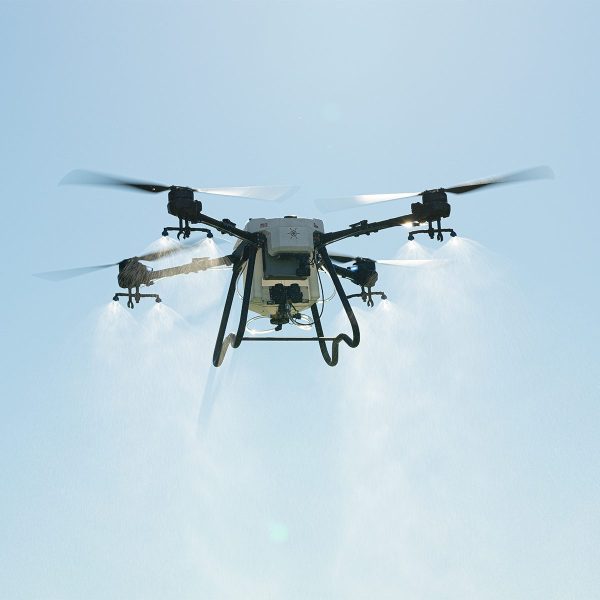

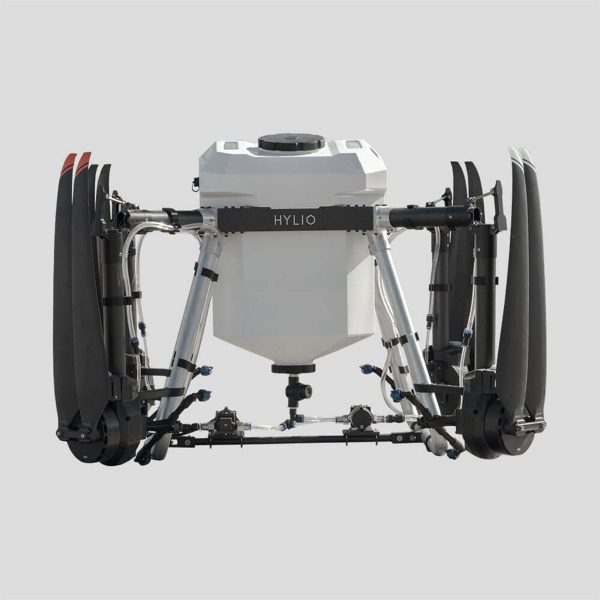

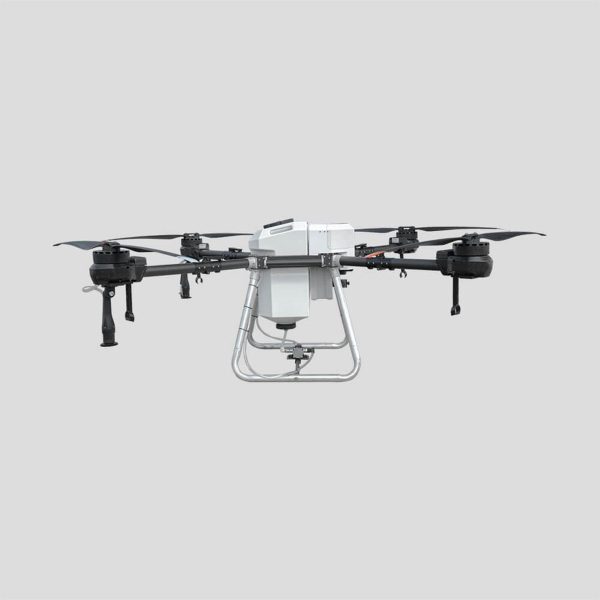

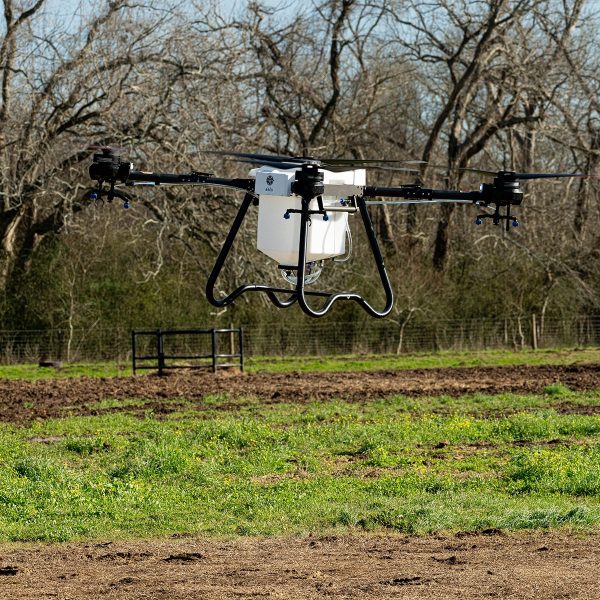

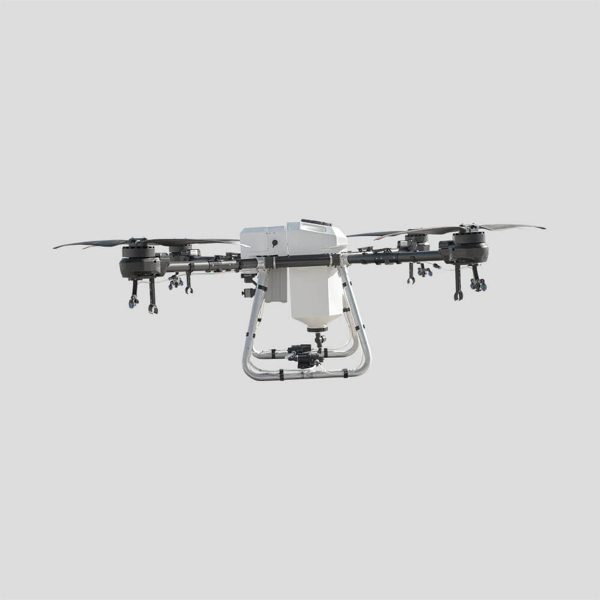

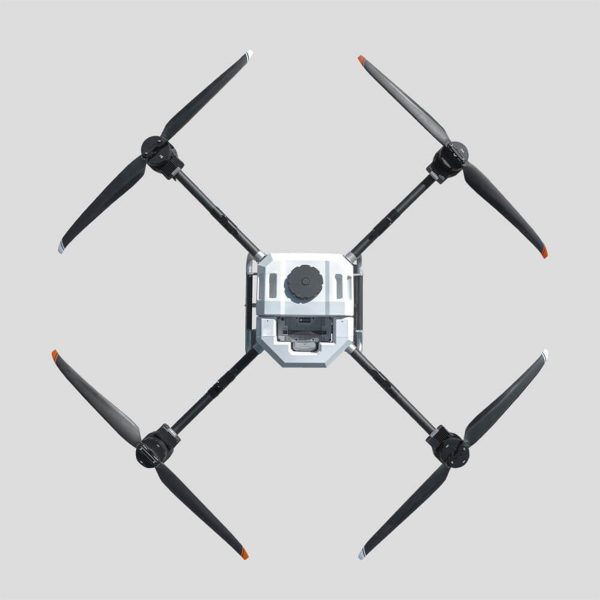

Hylio ARES HYL-150 CP-D-150 Drone
Call to OrderFrontier Precision is currently adding items to the Shop, so please contact us at 800-359-3703 to order or for more information on this item.
Hylio’s Most Advanced System
Designed, engineered, and manufactured from the ground up at Hylio headquarters in Richmond, Texas, the HYL-150 ARES is the result of a decade’s worth of experience in the highly competitive ag-drone sector. Combining a heavy payload, robust and serviceable components, an ergonomic form factor, and Hylio’s swarm-enabling AgroSol Ground Control Software, the ARES checks all of the boxes and is a must have for any serious ag-drone operator.
Hylio ARES HYL-150 - Maximize Your Production
Key Specifications:
- 13.0 Gallon Payload
- Up to 40 Foot Swath Width
- Up to 70 Acres/Hr @ 2 GPA Rate
Elevate Your Farm
Key Features:
Modular Applications
Quickly swap between hydraulic nozzle tips, rotary atomizers, and spreader configurations to tackle any job!
Intuitive Software
Use Hylio's AgroSol GCSÂ to plan, monitor, and execute any crop treatment with one drone, or a whole swarm!
Smart Tank Sensing
Onboard weight sensors, tank level sensors, and flowmeters enable full rate control for both liquid and solid payload applications.
USA Made | NDAA Safe
Designed, engineered, and manufactured (with USÂ and global components) at Hylio's production facility in Richmond, Texas. Fully NDAA compliant: safe and secure for government work.
Hylio Groundlink
Hylio's proprietary, NDAA compliant ground station solution. An integrated Windows tablet + RCÂ controller which allows you to seamlessly switch between autonomous and manual controls for one or multiple drones.
18S30AH Intelligent LiPo Battery
The ARES utilizes Hylio’s 18S30Ah LiPo Batteries that are specifically designed for rugged, outdoor use and fast-charging to maximize your productivity. Featuring a convenient blade connector and locking mechanism, the battery easily and securely slides in and out of the ARES' battery dock for quick swapping between flights.
9000W LiPo Battery Charger
The ARES utilizes an 18S 9KW LiPo Dual-Channel Charger capable of outputting 120A total; either 120A through one channel, or 60A per channel simultaneously. It can charge a pair of batteries simultaneously in approximately 20-25 minutes, or one battery alone in 10-12 minutes. Note that the charge rate is dependent on a variety of factors including voltage and capacity of the power source, temperature, and level of discharge.
Next Level Features | Built for Work
Control
Hylio's AgriDrones can be flown in either autonomous or manual flight control modes. You can command up to three UAS from a single ground station as they complete fully automated operations. Also, each AgriDrone comes with an RC controller for optional manual mode.
Reliability
We design and build our systems to stand up to the real-life challenges of field work. With aerospace grade materials, redundant sub-systems, and easily serviceable components, our AgriDrones will do the heavy-duty work, day in and day out.
Monitor
From an array of sensors, you have real-time access to vitals such as GPSÂ position, flow-rate, altitude, and more. All flight and treatment data is stored within your account so that you can access as-applied maps, maintenance data, and more within our interface.
Obstacle Avoidance
The AgriDrones detect and avoid obstacles in real-time using multiple radar sensors. This feature is active in both autonomous and manual control modes. You can fly with confidence in complicated areas thanks to this safety feature.
Real-time Kinematic Positioning
For many applications, standard GPSÂ accuracy is enough. For applications where you need centimeter-level precision, you can utilize Hylio's RTK base station solution. The GPS units equipped on the AgriDrone are already compatible with the base station; simply set the station up, click, "connect", and then you'll have access to RTK corrections.
All-in-one Controller
All of Hylio's AgriDrones come equipped with Hylio's GroundLink Controller. The GroundLink Controller is designed and built in-house. It is an all-in-one, NDAA compliant ground station solution. Featuring a 13.3" Windows-based tablet computer and 2.4 gHz radio  integrated into a rugged, ergonomic controller which let's you seamlessly access all autonomous and manual controls on one platform.
