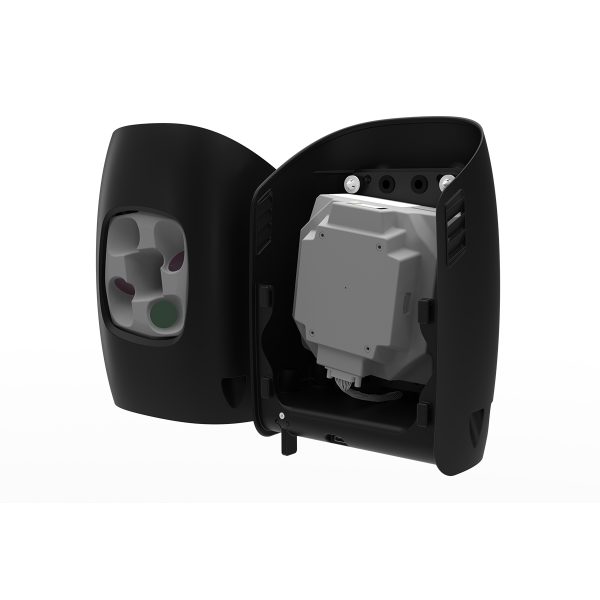

Quantum Systems 4260574665531 Oblique D2M Five-Lens RGB Camera

Quantum Systems 4260574665531 Oblique D2M Five-Lens RGB Camera

The Oblique D2M is a powerful oblique imaging system consisting of five high-resolution multidirectional cameras, making it the ideal tool for large scale 3D photogrammetry. A fast trigger interval along with custom high-speed storage provides class-leading time efficiency without compromising data quality. The payload combines four oblique and one NADIR camera to capture complex geometries with ease. This ensures remarkable detail even on slanted surfaces and makes Oblique D2M de-stined for 3D mesh generation of high-rise areas, indus-trial environments, archaeological sites and alike.

Technical Specifications:

• GSD
  1.50 cm @100m AGL
• Cameras
  1 x NADIR, 4 x Oblique
• Sensor Resolution
  26 MP (6252 x 4168 px)

• Total Resolution
  130 MP

• Trigger Interval
  ≥ 0.8 seconds

• Sensor Type
  CMOS

• Sensor Format
  APS-C

• Sensor Size
  23.5 x 15.6 mm
• Focal Length
  25 mm NADIR, 35 mm (Oblique)

• Payload Weight RTF
  833.7 g

• Flight Time
  60 Minutes

• Storage
  High speed data storage device (640 GB).
