Quantum Systems 4260574666842 Qube 640 LiDAR Scanner

Quantum Systems 4260574666842 Qube 640 LiDAR Scanner

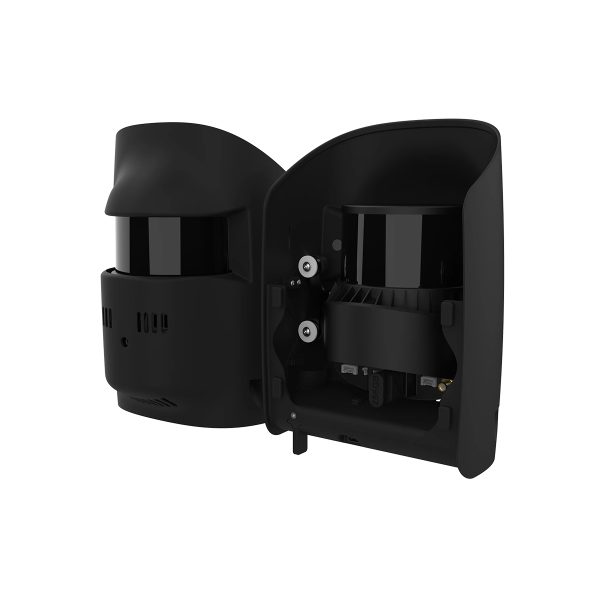

The Qube 640 is co-developed with YellowScan for Trinity Pro and Tactical drones. It features a selectable FOV (field of view) of up to 176°. Combined with Trinity’s capabilities, it enables 32 km corridor scanning with one single flight. At 120° FOV, it improves productivity by 50% compared to its predecessor, the Qube 240. The sensor ensures improved vegetation penetration, detailing foliage and trunks, and facilitates vertical scanning applications with reduced outer edge mismatches, thanks to the new IMU. An integrated 8MP RGB camera enables LiDAR capture and colorization in the same flight.

Technical Specifications:

• Scanner
  Hesai XT32M2X

• GNSS Inertial Solution
  SBG Quanta Micro

• Integrated Camera
  8 MP (For colorization purposes.)

• Laser Range
  300 m

• Precision¹, ³
  3 cm
• Accuracy², ³
  2.5 cm
• Scanner FOV
  176° x 40.3°

• Shots per Second
  640 000 points/sec

• Echoes per Shot
  Up to 3

• Center Point Density @100m
  34 -100 points/sqm

• Max. Data Points Generated ⁴
  1 920 000 points/ sec

1. Precision, also called reproducibility or repeatability, accounts for the variation in successive measurements taken on the same target.
2. Accuracy is the degree of conformity of a measured position to its actual (true) value.
3. 1 sigma @ 50 m, Nadir.
4. Triple Echo.
